Basic Info.
Dimension(L*W*H)
2400*2300*21001900mm
Name
Scrap Metal Crusher Machine
Crushing Degree
Coarse Crusher
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongsā² Features
Adjustable Tongs
After-sales Service
Help to Install
Transport Package
Wooden Box
Specification
2400*2300*21001900mm
Production Capacity
10000 - 17000 Kg/H
Packaging & Delivery
Package Size
8600.00cm * 3500.00cm * 4000.00cm
Package Gross Weight
31000.000kg
Product Description
manufacturer supply high quality scrap metal crusherhot sale scrap metal crusherbike crusherhttps://jinlonghengji.en.made-in-china.com/product-list-1.html
The production is mainly used for the processing of scrap car body, tinplate, household appliances, bicycles, empty cans and other lower waste so that it becomes a superior steel raw materials. Through this machine to smash, remove the coating, increase the volume proportion, to prevent explosion in the cast furnace, in some cases to enhance the dissolution rate.
The mechanical characteristics
1.HJ Machine committes to the R&D of new product and manufactueing.Customized design according to customer requirement , privide hightest production with minimum investment . 2.Computer monitoring and PLC control system ,achieve high efficiency , energy and labor saving. 3.90% of component&part are produced by Tongli Machine with highest QC system to ensure product quality .Especially to make key components by using high grade material for longer lifetime. 4.Machine designed with low vibration ,low noise,de-dusting etc. to resuce secondary pollution. 5.Multi level separating system:solution provided according to demand ,high sorting ratio.
A
Application:
A. the crushed or without squashed waste cars
B. after shearing or packing,the density is not more than 1t/3m of the thin material
C. household appliance: endures washing machine,freezer,air conditioner,Can,etc.

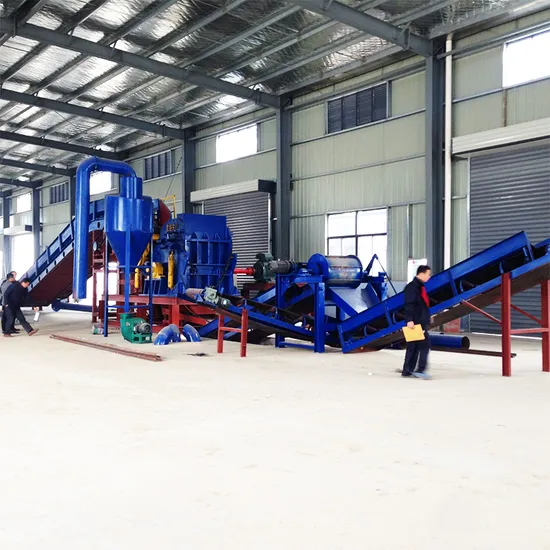

The working principle of the scrap crusher is the process of sorting metal and scrap metal material by shredding the scrap metal material and then the secondary crushing and magnetic separator. The large-scale scrap crusher is cut by the high-speed rotating tool. The smaller diameter of the screen will be a one-time material broken to smaller size particles, usually used as a secondary crushing equipment. Compact design, save space, tilt up and down the box, easy to replace the blade, high safety factor bearings, to reduce the use of improper damage caused by the probability of bearing, roller and chassis as a whole to ensure that between the knife and set knife The shear gap accuracy. Scrap production line with high strength, good toughness, easy to break and wear and other characteristics, in the work to ensure a sharp blade, disassembly, maintenance, maintenance, very convenient. Gongyi Jinlong Hengji Heavy Industry Machinery Co.,Ltd. is committed to environmental protection and recycling industries machinery and equipment development, design,manufacture and sale of manufacturing enterprises. The company "science and technology, environment, resources" as the core concept, is committed to creating a collection of "metal wastes and scrapped car recycling dismantling,""urban waste and household garbage utilization", "renewable resources" in one development Circular economy industrial chain.
