Sdcad Brand Jet Grouting Machine for Wet Soil Mixing/ Water Bentonite and Cement Mixing Plant

Product Description

Profuct Overview
Grout Mixing Plant

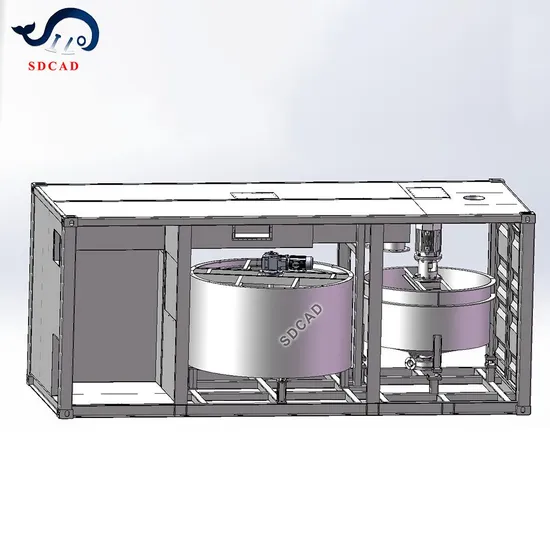

Grout mixing station is a grout mixing and pumping system designed to fit inside a shipping container making it highly portable and easy to transport between job sites. This type of equipment is commonly used in construction and civil engineering projects to mix and inject cement grout and other materials to strengthen soil or concrete structures.
Grout mixing stations, Our container type grout mixing stations feature containerized design, making them easy to transport, install and use, and can meet various on-site requirements, as well as be used in conjunction with other equipment. can adapt to a variety of complex const.

Profuct Show
• Grout Plants range includes different sizes equipment with production.
• The continuous mass transfer between the two zones ensures maximum possible homogeneity of the mixture.
• Absolutely minimal sedimentation of the mixture.
• High mixing capacity due to short mixing time.
• Lowest possible use of raw materials.
• Operator cabin with full automatic control panel board. Mixing water,cement and bentonite with Ce and ISO Certificated
GB-C1 container type grout batching plant with bolted cement silo



GB-C2 container type grout batching plant with 1*20GP container cement silo




GB-C3 container type grout batching plant with 2*20GP container cement silo



Jet grout batching mixer

Features At A Glance

Size: GB 5~100 m3/h
Type: Container-type grout mixing station, Jet Grout Plants,
Application: Anchor injection, Jet grouting, Drilling, Concreting, Cavity filling, Bottom injection Tunnel applications, Dam applications

Customized Solution is the Core concepts of SDCAD
Full Process Solution Provider - SDCAD 1.Automatic grouting equipment is with CE, ISO certification.
2.Compact structure, a whole plant with mixing and grouting.
3.Automated mixing and grouting plant is simple operation and easy maintenance.
4. There are two operation modes: automatic mode and manual mode.
5. Less spare parts ensure low maintenance costs.
6. High speed vortex mixer ensures mix quickly and evenly.
7.The proportion of materials in the formula can be adjusted freely.
8. It can realize automatic configuration and replenishment of materials.
9. Flameproof electric cabinet,protection grade IP56.
10.Tank body manufactured by the thicker plate for more reliable work and longer use life.
11. Standard seal parts to ensure excellent seal quality.

Product Specifications
Model/Type	GP5	GP10	GP20	GP25	GP30
Production Capacity (m³)	5	10	20	25	30
Total Power (KW)	20	30	40	45	45
Dimensions (m)	1,5x2,43x1,85	2,43x6,05x2,59	2,43x6,05x2,59	2,43x6,05x2,59	2,43x6,05x2,59
Weight (kg)	1200	3000	6000	6500	6700
Water Tank Capacity (lt)	1200	2000	2400	2800	3000
Mikser/Mixer
Capacity (lt)	330	800	1500	1600	1800
Electric Motor (KW)	5.5		11		15
Dinlendirici/Agitator
Capacity (lt)	650	1200	2500	3200	3600
Electric Motor (KW)	0.75	2.0	2.2	2.2	2.2
Material	Carbon steel (Mixing tank-8mm, Temporary hopper-6mm)
Control system	Full auto control system with SIEMENTS brand PLC control
Transport	standard 20ft container size and can be stacked with container silo
Customized	SDCAD provider Device and capacity can be customized according to clients' needs.
Quality assurance	CE ROHS ISO etc.certifications available

Profuct Configuration
Full Process Solution Provider - SDCAD
SDCAD continuous mix batch plants are custom built and specially designed for volume proportioning of multiple powdered ingredients and fluids. These plants have built-in feed rate adjustment and are capable of providing the operator with continuous density measurements. The grout or slurry proportioning is constantly adjusted by the operator to ensure accurate component addition. The plant is specifically well suited for projects requiring very high flow rates and large volumes of grout or slurry, like cement-bentonite slurry trenching or larger soil mixing and jet Grouting projects.

APPLICATIONS
1:Anchor injection
2:Jet grouting
3:Drilling
4:Concreting
5:Cavity filling
6:Bottom injection
7:Tunnel applications
8:Dam applications


Advantages of SDCADI's Grout Mixing Plant
* High-speed Colloidal Grout Mixer * Main pipeline valves are all pneumatic valves * Mixture, cycling pump and agitator have automatic cleaning function * Cement can be added by cement silo or screw feeder automatically * The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components * Two modes of operation:fully automatic mode and manual mode * Easy to operate and maintain * Up to 8mm particle size * Equipped with some ceiling lamps, for illuminating the different working areas. * Can be placed directly in the 20ft cabinet
Control system
Sales And Service Network


FAQ

May you introduce your Factory?
Our factory is with 10,000m2 factory floor area. More than 100 workers will service for you. Our factory is located in Shandong -the only province which cover all industrial sectors in China.
What's the Advantage of your products?
Full Process Solution Provider of Mixing, Storage, Conveying.
Our engineers team provide Customized Solution for every project!
What is your Delivery time?
3-7 days for spare parts; 10-20 days for simple machine. 30-50 days for production line.
What Certificate do you have to ensure quality?
CE certification is provided.
ISO health, ISO Quality, ISO Environment are provided.
Do you have Quality Check QC Service?
QC checking work is including from material, steel processing, welding, painting, electric system, test, delivery, installation. Quality check for full process
How can I Get Solution to my inquiry?
Pls send inquiry to us now,
More project and contact information more better.
Engineers will make plan for you. Our Sales manager will Quote to you in the first time.
