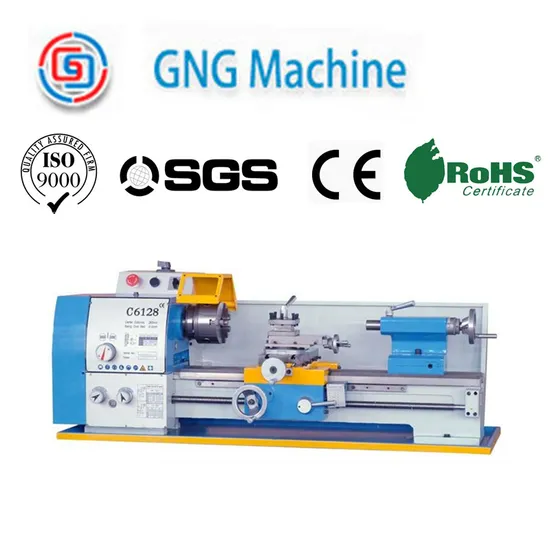

High Precision Metal Processing Hobby Bench Lathe
| US$1,020.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6128B
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
280mm
Max. Swing Over Cross Slide
150mm
Distance Between Centers
610mm
Width of Bed
180mm
Spindle Bore
26mm
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Jiangsu
HS Code
845899000
Production Capacity
1000/Month
Product Description
Min. Order Quantity: 3 Set/SetsSupply Ability: 200 Set/Sets per Month
Port: Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 280mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: C6128B
Voltage: 230V
Power(W): 750W
Dimension(L*W*H): 168X75X140cm
Weight: 560kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in plywood case
Delivery Detail: 30-45days
Specifications
1. Most useful, heavy duty hobby lathe
2. Harden and precision ground bedway
3. Width bedway gets greater capacity
Feature:
· Precision ground and supersonic frequency hardened bed ways. It features with high accuracy and well wear-resisting
· The spindle is supported with precision roller bearing.
· Safety magnetic switch or lock key switch
· The width of bed ways is up to 180 mm,
Providing superb rigidity
Model | CQ6128B | CQ6128V |
| Max. swing Over bed | 280mm | |
| Max. swing Over Cross Slide | 150mm | |
| Distance between centers | 610mm | |
| Width Of Bed | 180mm | |
| Spindle bore | 26mm | |
| Taper Of Spindle bore | M. T. 4 | |
| Range Of Spindle Speeds | 125-2000rpm | 125-2000RPM(variable) |
| Taper of tailstock quill | M. T. 3 | |
| Metric threads can be cut | 0.1-3.5mm | |
| Inch threads can be cut | 8-35TPI | |
| Range of longitudinal feeds | 0.1-0.25mm/rev | |
| Max. travel of saddle | 570mm | |
| Max. travel of cross slide | 110mm | |
| Max. travel of top slide | 70mm | |
| Max. travel of tailstock quill | 90mm | |
| Motor power | 750w | 1.0kw. DC. motor |
| Packing size (L × W × H ) | 1320× 650× 610mm | |
| Net/Gross weight | 218kg/258kg | |
| Foot Stands(L× W× H) | 280× 390× 600mm | |
| Foot Stands (Net/Gross weight ) | 52kg/56kg | |
