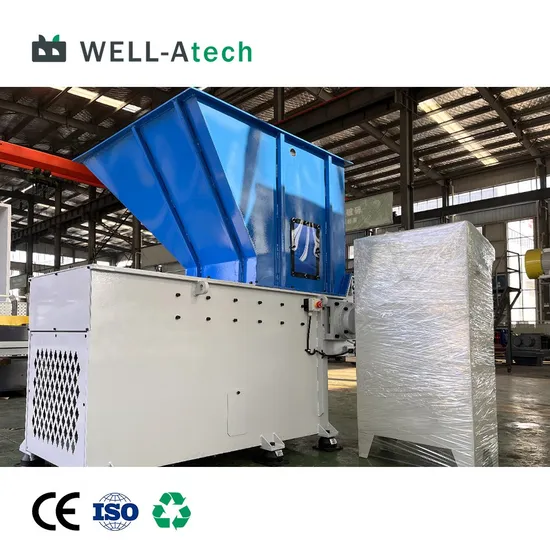

Single Shaft Recycling Scrap Copper Wire Shredder Plastic Pipe Shredding Machine
| US$12,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WES-800
Type
Single Shaft Shredder
Structure
Top Feed
Knife Roll
Solid Knife Roller
Automation
Automatic
Computerized
Control Cabinet
Certification
CE
Drive
Electric
Object
Plastic Drum/Bottles, Textile, Cardboard, etc
Principle
Screen
Cutter Material
High Alloy Steel
Rotor Blade Qty
38PCS
Counter Blade Qty
4PCS
Blade Size
40*40mm
Weight
Approx 4.15tons
Rotating Speed
80rpm
Shredding Chamber
850*800mm
Transport Package
Wooden Case with Film
Specification
2850*1760*2210mm
Trademark
WELL-Atech
Origin
China
HS Code
8477800000
Production Capacity
300sets
Packaging & Delivery
Package Size
295.00cm * 186.00cm * 231.00cm
Package Gross Weight
4200.000kg
Product Description
The WES series single-shaft shredder is applied in the refinement and waste recovery of small to medium-sized materials across various industries.It primarily handles high-hardness, high-toughness rubber materials, plastic products, wood, and industrial waste paper, producing uniformly sized particles after shredding.This series of shredders features low rotational speed, high torque, and a compact structure, maintaining stability and durability in harsh industrial environments. The screen structure and blade layout can be customized based on the material characteristics and discharge requirements to achieve satisfactory results.
Product Description
Project Site
Product Parameters
| Model | WES-600 | WES-800 | WES-1000 | WES-1200 | WES-1400 | |
| Shredding Chamber(mm) | 500*580mm | 850*800mm | 850*1000mm | 850*1200mm | 850*1400mm | |
| Power | 18.5KW | 37KW | 45KW | 55KW | 75KW | |
| Hydraulic Power | 1.5KW | 3.7KW | 3.75KW | 5.5KW | 5.5KW | |
| Rotor Blades QTY | 26 pcs | 38 pcs | 52 pcs | 58 pcs | 82 pcs | |
| Counter Blades QTY | 4 pcs | 4 pcs | 4 pcs | 4 pcs | 4 pcs | |
| Rotation Diameter | 250 mm | 400 mm | 400 mm | 400 mm | 400 mm | |
| Shaft length | 580 mm | 800 mm | 1000 mm | 1200 mm | 1400 mm | |
| Speed | 80rpm | 80rpm | 80rpm | 80rpm | 80rpm | |
| Capacity(max) | 0.5 t/h | 1.2 t/h | 1.5 t/h | 2.0 t/h | 2.2 t/h | |
| Net Weight | 1.75 t | 4.15 t | 4.308 t | 5.3 t | 5.9 t | |
| Dimension | 1760*1300*1850mm | 2850*1760*2210mm | 2850*1960*2220mm | 2850*2560*2330mm | 2850*2760*2330mm | |
| Voltage | Can be customized | |||||
Features
Application
+ Plastic: Plastic film, PET bottles, Plastic lump etc
+ Chemical Fiber: Carpet, Labor protection clothing etc
+ Industrial Waste: Sponge, Textile, Leather, Wood etc
+ Paper: Document, Packing paper, Cardboard etc
+ Cables: Copper cable, Aluminum cable, Composite cable etc
+ Aluminum: UBC, Aluminum shaving etc
