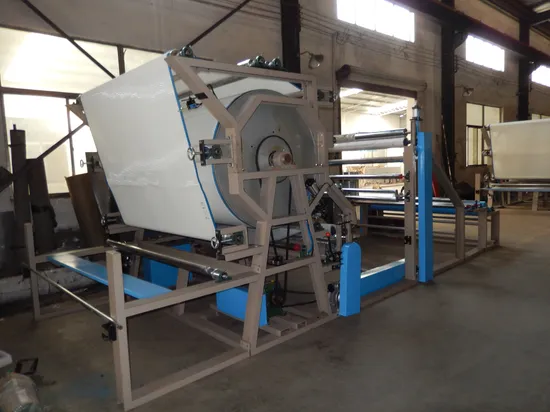

Water-Based Glue Fabric and EVA Foam Laminating Machine

Product Description

Foam lamination machine
Water-based glue Fabric and EVA Foam Laminating Machine
Applications
Used for gluing material and laminating with other materials, suitable for laminating sponge, cloth, nonwoven, plastic, leather, synthetic leather...
Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.
Key Features
Applicable to water-based glue;
Vertical structure;
Equipped with high quality heat resistance net belt to make the laminated materials contact closely with the drying cylinder, to improve the drying effect, and make the laminated product soft, washable, and strengthen adhesive fastness;
Equipped with two sets of heating system, user can select one set heating mode or two sets, to reduce the energy consumption and lower costs;
Surface of the drying cylinder is coated with anit heating fabric to avoid glue;
Pneumatically controlled or handwheel controlled clamp roller;
Equipped with automatic infrared centering control unit, which can effectively prevent the net belt deviation, and ensure the net belt service life;
Efficient cooling unit is suitable for various materials;
Low maintenance cost and simple to maintain.
Options
1200mm diameter heating drum;
Automatic temperature control system;
Frequency converter linkage;
Counting function.
Machine technology :

Model:	XH-JX-01
Working Width:	1650 mm
Drying Cylinder Diameter:	1500 mm
Drying Cylinder Width:	1800 mm
Heating Tube Inside Drying Cylinder:	30 PCS x 1.5 KW
Running speed:	1-40 m/min
Power:	45KW
Net Weight:	3000 KGS
Dimension:	6000 x 2650 x 2600 mm

Remarks : we also have other patterns of the machine : 1500D*1800mm ; 1500D*2000mm; 1200D*1500mm ; 1200D*1800mm ; 1200D *2000mm . you can choose the machine as per material width .
FAQ :
1, Are you a factory or a trade company ?
we are a factory , welcome you to visit our factory and discuss our business face to face .
2, Where is your factory located ? How can I visit your factory ?
Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu Province China .
You can take plane from Guangzhou city to Yancheng city or shanghai to yancheng . It is very convenient .
3, Do you attend any Fair ?
Yes , we attend some professional fairs every year :

All china leather exhibition & china international footwear fair
( in Shanghai china )
International exhibition on shoes& leather industry
(In Guangzhou china )
4, Can we use our company logo on your machine ?
Yes , you can use your logo if necessary .
5, How does your factory control the machine quality ?
We have some QC staffs to inspect and test the machine .
every machine must be tested for 12-16 hours before leaving factory .
6, How long is your guarantee period ?
One year
