Chinese Supplier Factories Directly Supply Honeywell Industrial Gas Burner Flame Detectors C7027A Series Original Genuine Products

Product Description

Shenzhen Zhongliweiye electromechanical equipment Co., Ltd is a manufacturing company which is focused on design, produce the whole set of Powder, liquid, electrostatic coating equipment, electronic control equipment, industrial manufacture line, UV curing equipment, conveying machinery, "oven", powder coating cabinet, tunnel furnace drying line, industrial Coating manufacture line,dust-free purification system, and we also sell a variety of gas/oil burner, infrared gas burner and parts of different brands of China and abroad. We get a strong team, credible, follow contractor to ensure product quality, with a variety of operating characteristics and the principle of short profits and more product sales, won the trust of customers.
Product Description

service life	10 Years
fuel	gas
Measurement method	static state
Quality Product Certification	SIL certification
wind proof	have

C7027A104 Honeywell's Flame Detector Working Method
C7015A1076,C7015A1092
C7015A1126,C7027A1023
Honeywell Combustion Contactor
Its function is to monitor and indicate the presence of flames, and it is equipped with a flame current measurement socket, which can conveniently measure the flame signal strength. FC1000A needs to be used in conjunction with UV tube flame detectors (such as C7012A, C7012C, C7027A, C7035A, C7044A) to provide signals for the combustion controller. The rated working voltage is 115VAC or 220VAC, respectively. Flame failure response time: less than 1 second (standard) FC1000A and FC100B are both flame amplifiers. Its function is to monitor and indicate the presence of flames, and it is equipped with a flame current measurement socket, which can conveniently measure the flame signal strength. FC1000A needs to be used in conjunction with UV tube flame detectors (such as C7012A, C7012C, C7027A, C7035A, C7044A) to provide signals for the combustion controller

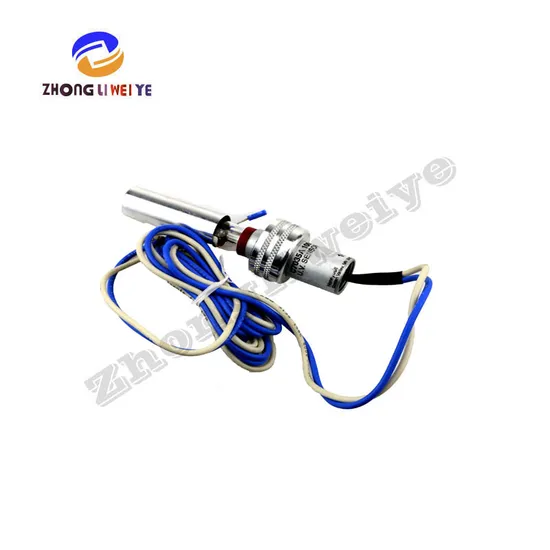

The C7027A ultraviolet flame detector is suitable for monitoring gas, liquid (oil) fuel, and non continuous combustion (shutdown at least once within 24 hours) flames.
Sensitivity is 1.2 meters per candle illumination. The applicable temperature range is -40-102 ° C. The sensitive spectral range is 185-240 nanometers, with a peak of 204 nanometers.
C7027A must be compatible with Honeywell's corresponding combustion safety controller for application.
(such as RA890G, FC1000A, EC7800 series controllers, etc.).
C7027A should be installed at one end of the light guide tube outside the furnace. The connection method is threaded connection. The light guide tube should be installed with a downward tilt. If it is prone to dust accumulation or high temperature,
There should be blowing and cooling air. The light guide tube should be aimed at the bright areas in the middle and front of the flame. If it is a swirl or flameless burner,
Please pay special attention to the flame position aligned with the light guide tube.
A shielded wire should be used to connect C7027A to the combustion safety controller, and the distance should not be too long (generally<100 meters)
