Product Description

Scrap Tyre Recycling Plant Manufacturer Tyre Recycling Machine Cost Tyre Recycle Machine for Make Different Size Rubber Product Description

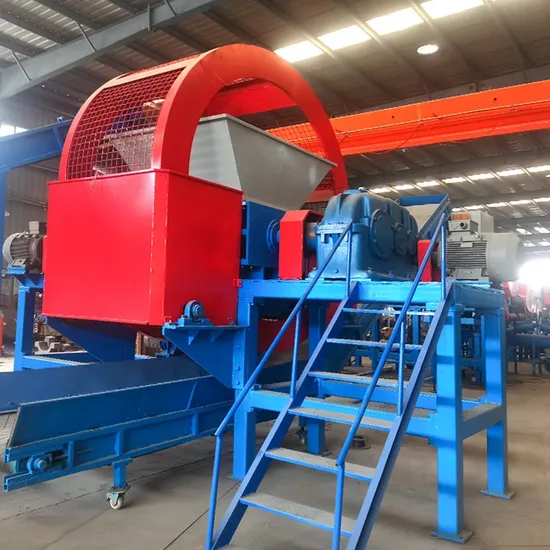

HVST double shaft shredder is specially designed for tire chips size separation. The shredded chips from prime shredder will drop on the rotary screen, and small chips will fall on the conveying belt, the big chips will be feed in the shredder for shredding and recycling again. The final chips will be around 50~60mm.

Model	Input size	Output size	Capacity	Motor	Weight
TS-800	800mm	50*50mm	1-2t/h	2*22kw	8t
TS-1200	1200mm	60*60mm	3-5t/h	2*37kw	14t
TS-1600	1600mm	50-150mm	6-8t/h	2*45kw	18t
TS-1800	1800mm	50-150mm	7-10t/h	2*55kw	23t

1.Provide the floor space and size required for recycling machine.
2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
PLC Fully-automatic Production Line 1.Conveyor-Transport the tire to the shredder; 2.Double shaft shredder---Shears the tire into 5-10 cm blocks;
3.Recirculation system---To control the size of shreds going to the raspers;
4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;
5.Over belt magnet--Separation of liberated steel from the rubber chips;
6.Vibratory feeder--Transports the rubber chips;
7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.
8.Vibratory screen-Sorts the granules by size and removes the majority of textile;
9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.
Flow chart of tire recycling (Fully-automatic Production Line): Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder Detailed Photos 2.Rasper
It is specially designed to remove wire steel from tire, and process the rubber chips from tire shredder into wire-free rubber mulch 10-30mm.
The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber.

Model	R-315	R-132	R-90	R75	R55	R45
Capacity	3-6t/h	1.5-3t/h	1-1.5t/h	700kg-1t/h	500-700kg/h	300-500kg/h
Poder	315kw	132kw	90kw	75kw	55kw	45kw
Weight	2400kg	6100kg	4200kg	3500kg	1850kg	1700kg
Voltage	As request
Size	10-30mm

3. Granulator
It is designed to process the rubber mulch into 1-6mm rubber granule, and separate the nylon fiber.
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 1mm. The granules are screened and re-circulated until the desired size is reached. Due to the design of the Granulator and precise alignment of the blades, the Granulator produces a very uniform cut and high quality granule.

Model	G-90	G-45	G-37
Power	90kw	45kw	37kw
Capacity	800-1500kg/h	500-800kg/h	300-500kg/h
Final size	1-6mm	1-6mm	1-6mm
Weight	5600mm	3300mm	2950mm

4. Miller
It is designed to process the rubber granule into fine rubber powder 30-120mesh as request. With advanced technology, automatic feeding system.
Customize your solution
If you need rubber granule with a mesh size <20, please choose our RUBBER GRANULE PRODUCTION LINE Rubber Granule Sze: 1-5 mm Crush tire blocks(3-5cm) into 1-6mm rubber granules and separate the steel wire and nylon fiber from the rubber granule to get pure finished products. It can produce 1-2mm 2-4mm 4-5mm three different size granules at the same time. If you need rubber powder with a mesh size ≥20, please choose our RUBBER POWDER PRODUCTION LINE Rubber Powder Size: 20-40 Mesh(Normally) Crush tire blocks(3-5cm) into rubber powder and separate steel wire and nylon fiber from rubber powder to get pure finished products. If you need rubber powder with a mesh size 20-120 mesh the Fine Grinder System is needed. Rubber Powder Size: 20-120 Mesh (According to customer requirements) The fine grinder is applied to crush rubber powder or rubber granule into more smaller size and it can reach 120 mesh. Customer feedback
