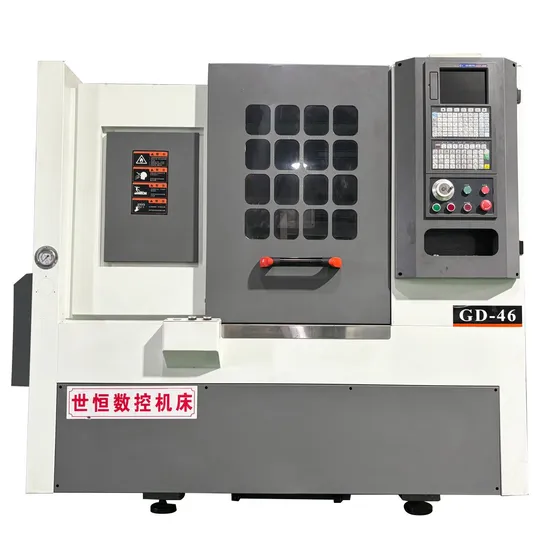

Gd46-3+3 High Precision Bench CNC Machine Tools 5 Axis CNC Composite Lathe
| US$18,500.00-19,990.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GD46-3+3
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
NC
Processing Precision
<=0.015
Performance Classification
Economical CNC Machine Tools
Condition
New
System
GSK, Syntec or Funac
System Language
English
Machine Weight
2000kg
Clamping Way
Hydraulic(Pneumatic Is Optional)
X/Z/Y Drive
350/300/75 mm
Tool
8 Station Tool Turret
Power Head
3+3 Vertical Power Head
Spindle Bore
56mm
Max Machining Bar Diameter
46mm
Max Machining Bar Length
200mm
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
2200*1600*1900mm
Trademark
XINSHIHENG
Origin
Taizhou
HS Code
8458110090
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
240.00cm * 180.00cm * 210.00cm
Package Gross Weight
2200.000kg
Product Description
Product DescriptionDetailed Photos
Product Parameters
| Standard Configuration Detail | |||||||
| Specification Item | Quantity | Supplier | Remark | ||||
| Specification of bed | 1unit | Shiheng | integrated bed | ||||
| Control System | 1unit | GSK(English) | 980TC3 | ||||
| Spindle Motor | 1unit | GSK(English) | 5.5KW | ||||
| X/Z servo drive | each 1 unit | GSK(original) | 6N/M | ||||
| Y axis power head | 1unit | Taijin | 3+3 | ||||
| X,Z screw bearing | each 1 unit | Haerbin | 7603025 | ||||
| X axis Ball Screw | 1 unit | Taiwan HIWIN | 3210 | ||||
| Z axis Ball Screw | 1 unit | Taiwan HIWIN | 3210 | ||||
| X Linear Guide Rail | 1 unit | Taiwan HIWIN | Roller 30 | ||||
| Z Linear Guide Rail | 1 unit | Taiwan HIWIN | Roller 30 | ||||
| Spindle | 1 unit | Yijing | A2-5 | ||||
| Tool Post/Turret | 1 unit | Dingchang | 8station turret | ||||
| Cutting Fluid Pump | 1 unit | Zegong | 0.4kw | ||||
| Auto Lubrication System | 1 unit | Qiantong | |||||
| Hydraulic Chuck | / | / | / | ||||
| X,Y,Z shaft coulping | each 1 unit | Domestic | 22-78-22 | ||||
| Hydraulic Tailstock | / | / | / | ||||
| Chip Cleaner | / | / | / | ||||
| Technology Parameter | |||||||
| Parameter | SPECIFICATIONS | Units | Value | ||||
| Machining Capacity | Maximum turning diameter over bed | mm | 300 | ||||
| Maximum turning diameter over turret | mm | 120 | |||||
| Maximum machining length | mm | 200 | |||||
| Maximum machining bar diameter | mm | 46 | |||||
| Diameter of spindle bore | mm | 56 | |||||
| Maximum stroke of X/Y/Z | mm | 350/150/300 | |||||
| Spindle maximum spindle speed | r/min | 4500 | |||||
| Power System | Spindle Motor | kw | 5.5 | ||||
| Cutting fluid pump motor | kw | 0.9 | |||||
| Hydraulic pump motor | kw | 0.75 | |||||
| X/Z drive motor | KW | 1.75kw | |||||
| Tool Post | Height of rectangular tool shank section | mm | 20 | ||||
| Precision | Repeat Positioning accuracy | mm | 0.005 | ||||
| Machining accuracy | mm | <0.01 | |||||
| Spindle beat | mm | <0.01 | |||||
| Tailstock | Movement | / | / | ||||
| Diameter of sleeve | / | / | |||||
| Taper of sleeve | / | / | |||||
| Sleeve movement | / | / | |||||
| Feed Velocity | Fast Feed velocity | m/min | X:20/Z:20 | ||||
| Other | Power supply power | KVA | 7.5 | ||||
| Machine weight | kg | 2000 | |||||
| Machine Size | mm | 2200X1600X1900 | |||||
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
