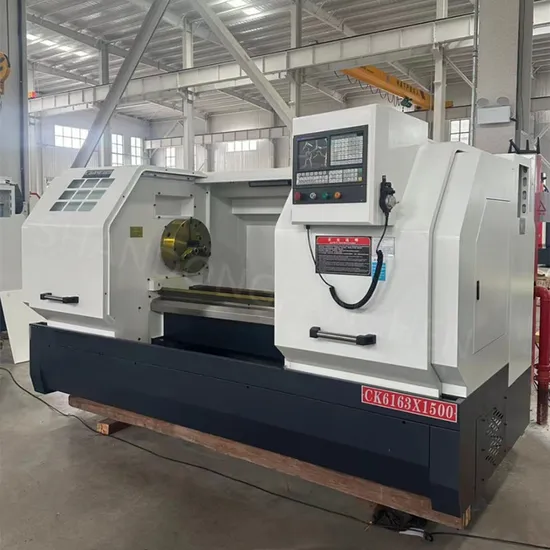

Ck6163 Ck6150 Hard Rail Automatic Horizontal CNC Lathe Wide Number System
| US$12,000.00-18,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
6163
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
630
Maximum Working Length
750/1000/1500/2000/3000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ105
Width of Guide
400
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
30-835r/Min
Motor Power
11
X-Axis Travel
315
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10
Packaging & Delivery
Package Size
1200.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
2200.000kg
Product Description
| item | unit | CAK6163 |
| Guide span | mm | 400 |
| Maximum workpiece length | mm | 1000/1500/2000/3000 |
| Maximum turning length | mm | 850 1350 1850 |
| Swing diameter on skateboard | mm | 320 |
| Chuck form (manual) | mm | 400 |
| Spindle through hole diameter | mm | 105 |
| Repositioning accuracy of tool holder transposition | mm | 0.008 |
| X-axis travel | mm | 315 |
| Spindle speed gear | mm | 17-1000Fourth gear 17-1000 |
| Workpiece accuracy | IT6-IT7 | |
| Workpiece surface roughness | μm | Ra1.6 |
| Tailgate sleeve diameter/stroke | mm | 100/250 |
| Taper of tailstock taper hole | Six Mohs | |
| Tool rest form | Vertical four-station | |
| Motor power | kw | 11 |
| Maximum turning diameter of bed | mm | 630 |
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
