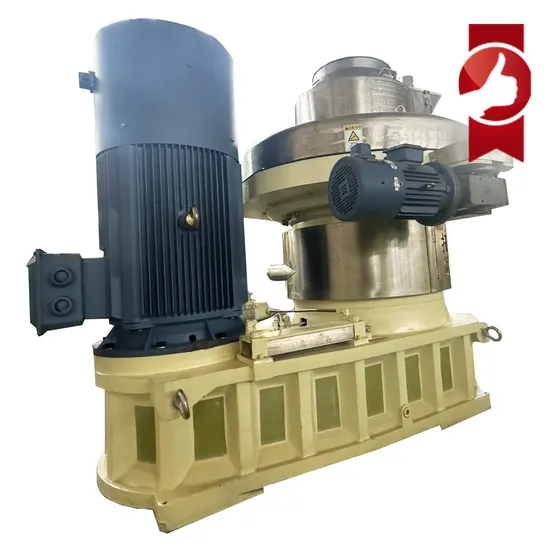

Vertical Ring Die Pellet Machine Tyj860 with 220kw, 3-5ton Per

Product Description

Vertical Ring Die Pellet Machine wood pellet Hourmachine 760 with 160kw, 3ton Per
Main Features
1)The main machine adopts Zhejiang Huixin's enlarged and widened gear box. The machine itself weighs nearly 8.5 tons, which increases the machine's torque resistance and makes the machine run more stable. The main machine discharge cover, top cover, cutter, lifting knife, and dustproof The covers are all made of 304 stainless steel, which has the advantages of high corrosion resistance and long service life.
The slewing bearing and the dial reducer are placed below. The dial reducer adopts hard tooth surface, which makes the performance more stable and improves the service life of the slewing support. The cutting knife can control the final length of the particles by adjusting the knife distance.
2)The automatic refueling machine adopts a new appearance, which makes refueling more intuitive, making it easier for users to observe the oil level and avoid damage to the machine caused by lack of oil. It is equipped with a galvanized base underneath.
3)The dust removal efficiency of the Shakron is high, and the bottom of the Shakron is equipped with a bucket for collecting dust. After collection, the pressed particles can be reused.
4)The electrical components in the electric control cabinet are from the well-known brand, which has the advantages of high stability and high safety
Product Parameters

Model	Power(KW)	Capacity(T)	Weight(T)	Size(mm)
TYJ551-II	90-110	1-2	5.5	2364*1550*1705
TYJ551-III	132	2-2.5	5.5	2364*1550*1705
TYJ760-III	160/185/200	2.5-3.5	9	2564*1750*2150
TYJ860-III	220-250	3-5	13.5	2664*1950*2150

Requirements for raw materials
Size:Less than 5 mm
All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.
Moisture:10-15%
Better for pelletizing high quality pellets, Final Pellets For burning
Ø6mm/8mm: household stove burning;
Ø8mm-18mm: Industrial using
Energy Level: 5kwh/kg, Compared to Oil: 1 lty oil = 2kg wood pellets
How to make pellet:
wood sawdust is the most common raw material for making wood pellets.
So, how to design a suitable wood pellet production line with wood sawdust as raw material?
Sometimes, a dryer is need ,as usually the MC of wood log is always about 30-50%,Under this condition, a dryer is need.
Then, a vertical ring die wood pellet mill machine is used to press dried, wood sawdust into good quality wood pellets.
Customer Case
Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you up(40
minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained CE.
