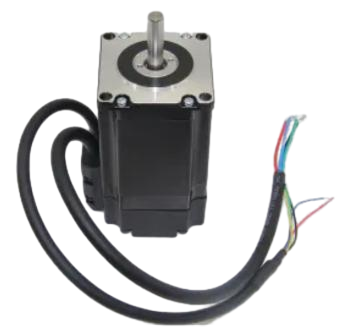

Micro Gear Stepper Motor with Reducer

Product Description

Specification
Model	Rated power	Rated voltage	Current	Number of poles	Rated speed	Rated torque	Peak torque	Moment constant	Length	Weight	Encoder
	W	V	A		rpm	N.m	N.m	N.m/A	mm	Kg	p/k
D706-05034	156	36	3.35	8	3000	0.5	1.5	0.149	60	1.3	1000
D706-10014	313	310	1.44	8	3000	1	3	0.69	90	2.08	1000

The above information is just for your information, please contact us for customize service.
Company profile
Shenglin has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brush and Brushless Motor, Planetary Gear Motor,RV Reducer and Helical-hypoid Gearbox,frequency converters,peed controller,etc. We are based on the goal of " Realize more industrial automation possibilities through smart manufacturing" And insist on high-quality products, excellent service to met customers′ needs. We sincerely welcome customers from at home and abroad to visit us and negotiate the business, and hope that we can woke together to create a great future.
*Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
*Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
*On Your Need
We can modify standard products or customize them to meet your specific needs.
