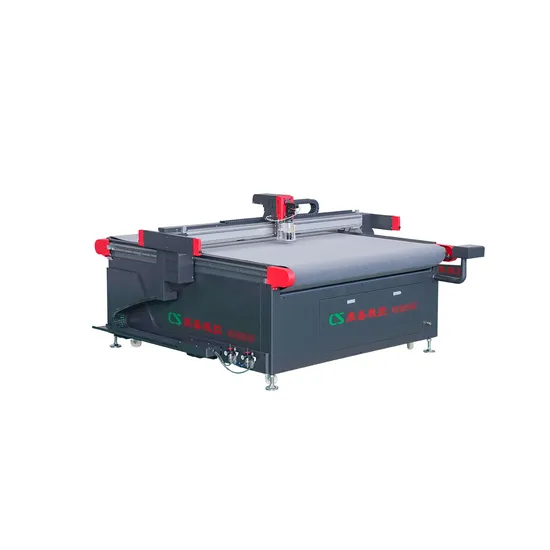

CNC Automatic Feeding Fabric Cloth Bag Cutting Machine with Vibration Knife Cloth Cutting Machine

Product Description

Product Description
1.Emergency stop button device. When the machine fails during work, the machine will stop working as soon as it is pressed, which is safer. 2.Taiwan PMI linear guide rail and rack transmission ensure that the machine cuts smoothly while running at high speed, achieving fast and precise cutting, with a speed of up to 1400mm/s. 3. Multifunctional cutting head, which can be configured with different heads according to different material properties to meet different customer needs. 4. Integrated welded bracket (guaranteed not to loosen for many years), integrated 42MM thick aluminum alloy platform (guaranteed level), and fast metal racks and guide rails are used for transmission. 5. Various methods of adsorbing and fixing materials (comprehensive adsorption, following adsorption, zoned adsorption) can be freely switched according to the material properties. 6. Computer automatic typesetting, adjustable to any width, any angle, multiple pieces can be freely combined and mixed for zero-distance typesetting to improve the maximum utilization of materials. Product Parameters

Model	CTA-SL1615	CTA-SL1625	CTA-DT1625
Effective cutting area	1500*1600(L*W)	2500*1600(L*W)	2500*1600(L*W)
Operating mode	automatic	automatic	Semi-automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1200mm/s (standard version)	max 1200mm/s (standard version)	max 1200mm/s (standard version)
Cutting thickness	≤50mm	≤50mm	≤50mm
Power	9KW	9KW	9KW
Cutting accuracy	±0.1mm	±0.1mm	±0.1mm
Cutting Materials	Flexible Materials	Flexible Materials	Flexible Materials
Material fixation method	vacuum adsorption	vacuum adsorption	vacuum adsorption
Control system	LED touch screen	LED touch screen	LED touch screen
Transmission interface	USB /inernet port	USB /inernet port	USB /inernet port
Drive motor	Delta/Innovative (standard version)	Delta/Innovative (standard version)	Delta/Innovative (standard version)
Rail	PMI	PMI	PMI
Architecture	integrated framework	integrated framework	integrated framework
Safety device	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision

Detailed Photos

Application

Application	Suitable for flexible (non-metallic) materials
Clothing	Easily replace or add tool heads with different functions, such as vibration knives, circular knives, pneumatic knives, electric knives, bevel knives, V punches, circular punches, etc.
Luggage
Home decoration
Packaging materials
Non-woven fabrics
Car interior
Car cushions
Synthetic materials
Silicone
Rubber materials

Company Profile
Quality: Integrated welding frame body,the preferred parts work stable,long service life.
Service: Lifetime after-sales, 24-hour standby service free update software,version and other regular visits. Secure: Infrared induction + mechanical collision avoidance system is safer and more assured. Feature: Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization. Precision: Higher cutting accuracy. The error is within 0.lmm. Environmental protection: Cold cutting dust-free, smoke-free,natural environmental protection does not destroy the material Brain power: Automatic cutting equipment, automatic plate holding software. Save materials and eliminate waste. Packaging & Shipping
FAQ
Q: 1. How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut?
2)What's the largest size of original materials?
3)What's the thickness of materials?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online technical support and door to door service. Anything confuse you, just contact us.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms?
A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc
Q: 6.What's the package?
A: Film packaging+wooden case. Fumigation-free plywood case is also available.
