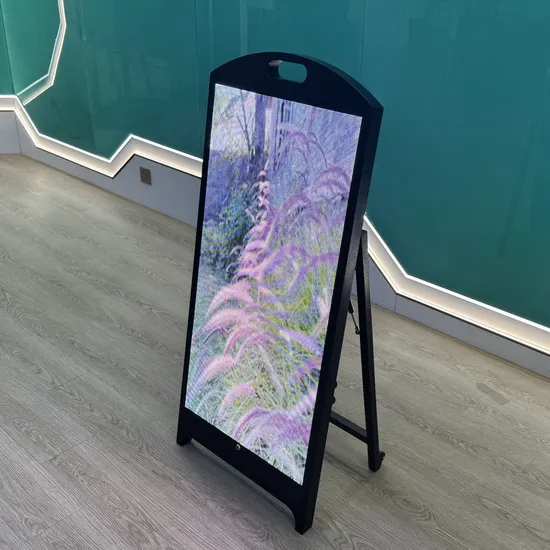

Long Life Slim Foldable LED Panel Portable Video Board Advertising Digital Screen Poster Display
| US$1,157.00-1,838.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SM-OL-43
Installation
Vertical
Type
Network Version AD Player
Touch Screen Type
Not Touchable
Screen Technology
LED
Interface Type
USB
Remote Control
Without Remote Control
OS
LINUX
Customized
Customized
Display
3X3, LED
Module Size
320mm X 160mm
Pixel Pitch
2.5mm
Pixel Resolution
W192 X H384
Use Average Power Consumption
200W (Depending on The Playback Content)
Screen Life
More Than 100000 Hours
Brightness (CD/M)
More Than 4500 CD
Protective Measures
Waterproof Silicone
Refresh Rate
More Than 3840Hz
Appearance Color
Black, White, Color Can Be Customized
Operating Temperature
-40 to 80
Storage Temperature
-40 to 80
Operating Humidity
0% to 98%
Storage Humidity
0% to 80%
Packaging Accessories
Charger
Transport Package
Export Carton
Specification
Customized
Trademark
Starmond
Origin
China
Production Capacity
50000 Sets/Year
Packaging & Delivery
Package Size
700.00cm * 1400.00cm * 200.00cm
Package Gross Weight
40.000kg
Product Description
Product DescriptionProduct Parameters
| Category | No. | Name | Specifications | ||||||||||
| Screen | 1 | Display | 3X3, LED | ||||||||||
| 2 | Module Size | 320mm*160mm | |||||||||||
| 3 | Pixel Pitch | 2.5mm | |||||||||||
| 4 | Pixel Resolution | W192* H384 | |||||||||||
| 5 | Use Average Power Consumption | 200W (depending on the playback content) | |||||||||||
| 6 | Screen Life | ≥100000 hours | |||||||||||
| 7 | Brightness (cd/m²) | ≥4500 cd | |||||||||||
| 8 | Protective Measures | Waterproof silicone | |||||||||||
| 9 | Refresh Rate | ≥3840HZ | |||||||||||
| Motherboard | 1 | Model | HD-C16L | ||||||||||
| 2 | CPU | Quad-core, 1.5GHz | |||||||||||
| 3 | GPU | Mali-G31 | |||||||||||
| 4 | Power Input Terminal | DC 5V(4.6V~5.5V) 3A | |||||||||||
| 5 | Input Network Port | 100M input network port communication, connect to computer for debugging and program publishing, used to access LAN or Internet | |||||||||||
| 6 | Audio Output | TRS 3.5mm standard dual-channel audio output port | |||||||||||
| 7 | USB | To update programs or expand capacity | |||||||||||
| 8 | Wi-Fi Antenna | Connect a Wi-Fi antenna to enhance wireless signal | |||||||||||
| 9 | Video Format | AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV and other common video formats support up to 2 channels of 1080 video playback at the same time | |||||||||||
| 10 | Image Format | BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM and other common image formats | |||||||||||
| 11 | Audio Format | MPEG-1 Layer III, AAC etc. | |||||||||||
| 12 | Text Display | Single-line text, static text, multi-line text, animated text, WPS, etc. | |||||||||||
| 13 | Electrical Parameters | Input power: DC 5V (4.6V~5.5V) Maximum power consumption: 8W | |||||||||||
| 14 | Hardware Parameters | Support 1080p@60fps hardware decoding playback, support 1080p@30fps hardware encoding | |||||||||||
| 15 | System Software | Linux4.4 operating system software, FPGA software | |||||||||||
| Battery | 1 | Battery Technology | Ternary lithium battery | ||||||||||
| 2 | Charging Time | 7 hours | |||||||||||
| 3 | Working Hours | 10 hours (When the temperature is below 0 degrees, the operating time decreases by 10% for every 5 degrees drop) | |||||||||||
| Appearance | 1 | Appearance Color | black, white, color can be customized | ||||||||||
| 2 | Appearance Size (H x W x D mm) | 1208.1*526.0*69.7MM | |||||||||||
| 3 | Packing Size (H x W x D mm) | 623*1300*170MM | |||||||||||
| 4 | Net Weight(Kg) | 30KG | |||||||||||
| 5 | Gross Weight(Kg) | 33KG | |||||||||||
| Condition | 1 | Operating Temperature | -40 °C to 80 °C | ||||||||||
| 2 | Storage Temperature | -40 °C to 80 °C | |||||||||||
| 3 | Operating Humidity | 0% to 98% | |||||||||||
| 4 | Storage Humidity | 0% to 80% | |||||||||||
| Accessories | 1 | Packaging Accessories | charger | ||||||||||
| Maintenance | 1 | Warranty | 1 year | ||||||||||
| 2 | Battery Warranty | 1 year | |||||||||||
| 3 | Technical Support | 10 years | |||||||||||
Company Profile
Packaging & Shipping
FAQ Q1. What is the Trade Term?
A1: EXW, FOB, CIF etc.
Q2. How long is the guarantee (period)?
A2: One year quality warranty.
Q3. How many colors for selection?
A3: The most popular colors are white and black. But the color can be customized.
Q4. How long is the delivery time?
A4: Mostly 7-15 days after receiving deposit or full payment.
Q5.What is the Payment term?
A5: T/T or L/C at sight. 30% Deposit for starting the production, balance before the shipment.
Q6. Will you guide us for installation and usage?
A6: Sure. We will teach you how to install and use.
Q7. During shipping, if there is a damage to products, how do you get replacement?
A7: During shipping, our shipping agency will try to ensure the safety of the goods and if needed, we can buy shipping insurance. If there is a damage to products, they would be responsible for the damage.
Q8. If there are any missing parts in our shipment, how long it takes for you to send?
A8: If there is some small missing components, we will DHL to you ASAP within one week.
