Mini 20ton/Hour 20tph Mobile Asphalt Drum Mixing Plant Mdhb20
| US$50,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MDHB-20
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
25m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Capacity
20ton/Hour
Hot Asphalt Temperature
130-165(Adjustable)
Transport Package
Nude Packing
Specification
15.6*15*6
Trademark
ORIEMAC
Origin
China
HS Code
87051092
Production Capacity
100 Units/Month
Product Description

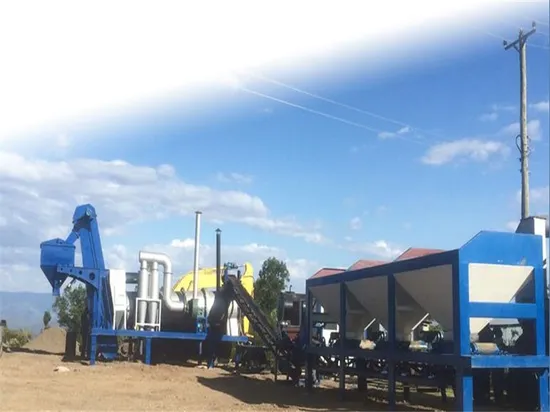

mini asphalt drum mixing plant MDHB20| Mobile Asphalt Drum Mixing Plant | ||||||
| Model | Capacity | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||
| Aggregate | Bitumen | Coal | Oil | |||
| MDHB-20 | 20ton/h | ±1.5% | ±1% | 75 | 10-13 | 5.5-7 |
1. Cold aggregate feeder
2. Bitumen tank
3. Burner
4. Drying & mixing drum
5. Hot asphalt silo
6. Water dust filter
7. Control cabin
| Model | MDHB20 |
| Type | Continuous Hot Mix |
| Capacity | 20 Tons Per Hour |
| Drying & Mixing Drum | Φ1000*4500mm |
| Fuel Consumption | diesel consumption: 5.5-7.0 kg /ton |
| Weighing Precision | hot aggregate: ±0.5%; bitumen: ±0.3% |
| Hot Asphalt Temperature | 130ºC-165ºC(adjustable) |
| Air Emissions | ≤50mg/Nm³ |
| Working Noise | ≤70db(A) |
| Operation | Full Auto/Manual Operation |
| Installation Power | 25.15kw |
| Electrical Design | 220V/380V-50Hz(adjustable) |
| Plant Covering Area | Length:15.6meters, width:15m, max. height point: 6m |
| Documents | Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate |
