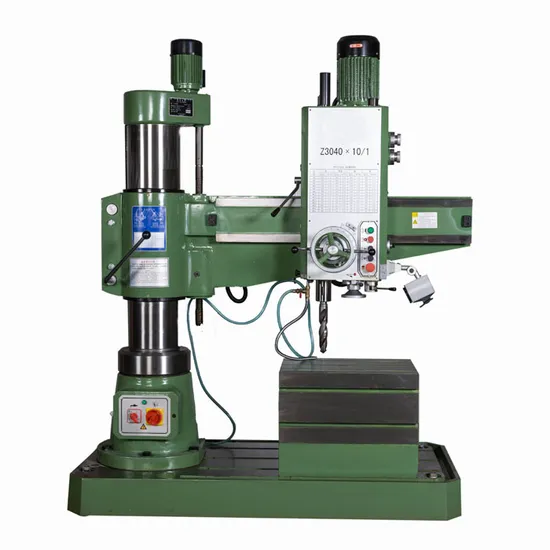

Chinese Used Round Column Vertical Radial Drilling Machine Z3040X10 Supplier

Chinese Used Round Column Vertical Radial Drilling Machine Z3040X10 Supplier

US$3,768.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040X10
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Name
Radial Drilling Machine
Max Drilling Capacity (mm)
40mm
Spindle Feeds (mm)
0.1, 0.16, 0.25
Spindle Taper (mm)
Mt4
Spindle Speeds Steps (mm)
6
Spindle Speed
75-1200rpm
Distance Spindle to Table
320-1180mm
Distance Spindle to Column
350-1100mm
Spindle Travel
180mm
Arm Rotary
180degree
Main Motor
2.2kw
Lifting Motor
0.75kw
Weight
1600kg
Transport Package
Wood Case/Plywood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

Product Description

chinese used round column vertical radial drilling machine Z3040X10 supplier
Specifications
Z3035 radial drilling machine:
1. Mechanical Transmission
2. Mechanical Clamping
3. Mechanical Variable Speed
The main feature:
1. Double pillar design, make rocker arm lighter, high efficiency.
2. Control system focused on spindle box, variable speed flexible and convenient.
3. Feed mechanical electrical is double insurance, safety. Avoid error operating.
4. Foundation big purchases adopt high quality material molding casting, after the aging treatment, use high pr ecision machine processing, with extremely high accuracy.
5. The guide face hardened, the spindle is nitriding process, prolong service life.
6. Spindle reversing, stopping (braking), variable speeding, neutral position, single handle control, convenient operation. Product Parameters

Main parameter Z3035×13 Z3035×10
Max. drilling diameter(mm) 35 35
Distance of spindle center line to column's generatrix (mm) 300-1300 300-1000
Distance of spindle nose to the base face 320-1020 250-1020
Spindle head horizontal travel 1000 700
Spindle taper Morse No.3 Morse No.4
Spindle speed scope and grades 50-2350 12 steps 50-2350 12 steps
Feed and grades 0.13-0.54 4 steps 0.13-0.54 4 steps
Spindle travel mm 250 250
Power of main motor kW 3 3
Net weight of the machine kg 1780 1600
Working area of base (mm) 1350×550 1050×450
Overall dimension of base ( L/W/H) mm 2105×800×2320 1805×800×2320

Model Z3032×10 Z3040×10 Z3040×11 Z3040×13
Max drilling cpacity(MM) 32 40 40 40
Distance from spindle center to column(MM) max:980
min:220
max:900
min:300
max:1000
min: 300
max:1200
min:300
Distance from spindle nose to base(MM) max:1000
min:260
max:1050
min:60
max:1050
min:150
max:1100
min:230
Spindle horizontal movement 700 700 700 700
Spindle travel(MM) 120 270 270 270
Spindle taper MT4 MT4 MT4 MT4
Spindle speed(R/MIN) 6 steps
108-1000
12 steps
46---1220
12 steps 46---1220 12 steps
46---1220
Column diameter(MM) 180 200 220 240
Spindle feed
(MM/R)
3 steps
0.10 - 0.25
3 steps
0.10 - 0.25
3 steps
0.10 - 0.25
Main motor(KW) 1.5/2.2 1.5/2.2 1.5/2.2 1.5/2.2
Lifting motor(KW) 0.75 0.75 0.55 1.1
weight(KG) 650 1100 1300 1500
dimension(mm) 1400×680×2100 1500×750×2150 1650×780×2150 1830×830×2250

Detailed Photos
