High Efficiency Pulverizer for Cinnamon, Rice, Herb, Grain, Sugar, Salt, etc

Product Description

Names: Pulverizer/ grinder/ pin mill
Application:
crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials. Sugar grinding, coffee bean crushing, rice milling, etc

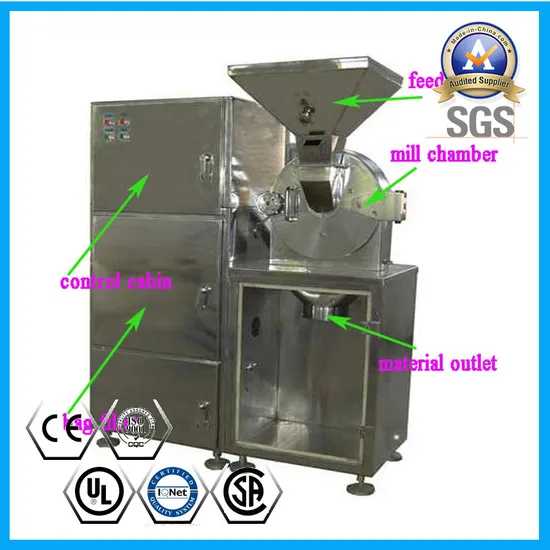

30B Series high efficiency mill by the host, auxiliary equipment, electronic control of three components, compact design, reasonable structure. For medicine, chemicals, pesticides, food and food industries, extremely versatile. Grinder built with hierarchical institution, the crushing and grading once. Thermal vacuum conveying the grinding mill machine when operating cavity produced a steady stream discharge, it is also adapted to the crushing heat-sensitive materials. 30B Series grinder to adapt a wide range of highly efficient, continuous production process, the particle size is adjustable; capable of handling such as: crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
The B series universal grinder machine: suitable for pharmaceutical, chemicals, pesticides, food and food industries, extremely versatile.
The relative motion of the machine and stationary use activities chainring teeth interrogations that was crushed by the impact of the teeth, the combined effects of friction and physical shock each other to get crushed. The machine structure is simple, robust, stable operation, good crushing effect, crushed material can be discharged directly from the grinding chamber, the particle size by changing different aperture sieve to obtain.
B series grinder parameter:

Model	20B	30B	40B	60B
Capacity (kg/h)	60-150	100-300	160-800	500-1500
Rotation speed (r/min)	4500	3800	3400	2800
feed size(mm)	6	10	12	15
outlet size (mesh)	60-120	60-120	60-120	60-120
Power (kw)	4	5.5	11	15
Weight (kg)	250	320	550	680
Overall size (L×W×H)(mm)	550×600×1250	600×700×1450	800×900×1550	1000×900×1680
