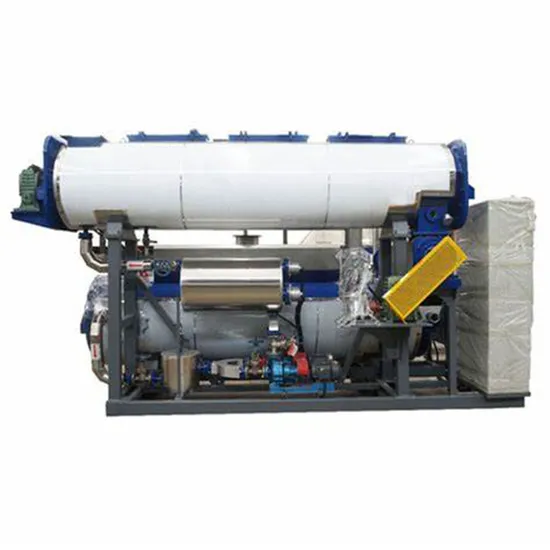

Industrial Dried Dry Fish Meal and Fish Oil Production Machine Plant

Product Description

industrial dried dry fish meal and fish oil production machine plant
Product Description
Fishmeal is a kind of commercial product that is processed by the fish after removing the edible parts for human consumption or lacking market value. Fishmeal is a kind of brown powder. Specifically, it is a product made by crushing, squeezing, drying, and degreasing the above-mentioned various types of dead fish, small fish and fish processed scraps, shrimp, crab, mealworm and so on. The purpose of fishmeal is that it is rich in protein and can be added to the animal feed.
Final Product
Raw Materials:
Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste),food waste, other aquatic products, like shrimp,loach,etc Product Parameters

Machine Name	Model	Installed power	Length	Diameter
Screw Conveyor	φ160×4000	1.1kw	4000mm	200mm
Cooking	φ377×3500	1.5kw	3500mm	1100mm
Pressing	φ219×1000	1.5kw	2000mm	300mm
Drying	φ820×3500	4kw	3500mm	1100mm

Fish Meal Prodution Proedures
Raw materials-Screw conveyor-Crushing-Steam cooker-Twin screw pressing-Oil water separation(fish oil)-Steam dryer-Hammer mill-Cooling-Fish meal
Crushing
Purpose: Crushing and thinning larger fish and fish heads to obtain blocks with a size of ≤5cm, thereby improving the efficiency of subsequent maturation and sterilization. Low noise, high crushing efficiency, automatic cleaning, complete confidentiality, can effectively avoid environmental pollution
Steam Cooker
The steamer is the key production equipment for fish meal processing. It is heated indirectly by steam or heat transfer oil to ensure that the raw fish is evenly cooked. Scope of application: the cooking and cooking of the leftovers from the processing of fish and aquatic products, The maturation, degreasing, shaping and curing of blood, internal organs and intestines in livestock slaughter.
Twin Screw Pressing
Adopting the principle of screw pressing, it is suitable for the pressing and dewatering of various high-humidity materials and the degreasing treatment of animal materials; The main shaft is made of 45# steel, and the spiral blades are welded by Q345 to improve the wear resistance of the equipment. The compression ratio is designed according to different materials to achieve the best dehydration and degreasing effect.
Steam Dryer
Scope of application: This machine is suitable for drying high-humidity materials such as feather meal, fish meal, blood meal, meat and bone meal, food waste, etc.
The outer jacket and the main shaft coil or steam box are used for steam to increase the heating area and the drying efficiency is high.
Water and oil separator
