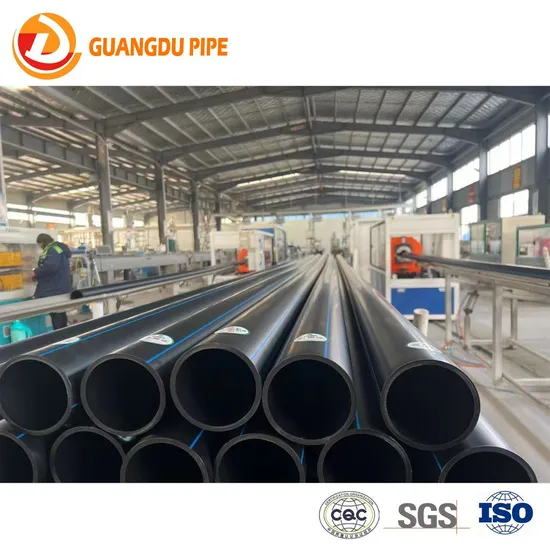

Professional Manufacturer PE High Density Polyethylene Water Supply Plastic HDPE Pipe for Drainage Sewage Irrigation Gas and Oil Transportation

Product Description

Professional Manufacturer Water Pipe Plastic Products Plastic Pipe Black PE Polyethlene Flexible HDPE Pipe for Gas Irrigation Tube Drainage Pipe Tube
Product Description
Meets GB/T13663-2000,ISO4427. HDPE water supply pipe use PE100 as raw materials, processing good flexibility, corrosion resistance, excellent impact resistance and other characteristics, pipe and fittings can be employed melt socket connection and butt fusion connection,to insure the pipe system safety and reliability as well as low construction cost.
Product Parameters

Nominal pressure	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa
Standard dimension ratio	SDR26	SDR21	SDR17	SDR13.6	SDR11
Nominal outside diameter (mm)	Wall thickness	Wall thickness	Wall thickness	Wall thickness	Wall thickness
16					2.0
20				2.0	2.3
25				2.3	3.0
32				2.4	3.0
40			2.3	3.0	3.7
50		2.3	2.9	3.7	4.6
63	2.3	2.5	3.7	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2	64.5
800	30.6	38.1	47.4	58.8	72.7
900	34.4	42.9	53.3	66.2
1000	38.2	47.7	59.3	73.6
1200	46.2	57.2	70.6

*We can customize the products according to your requirements.
Product Advantages
1, Light weight, long service lifeThe weight of HDPE pipe is one eighth that of steel pipe, while its service life is 8-10 times more than steel pipe.2, Good anti-corrosion, good wear-resistance, anti-aging.HDPE pipe has great corrosion resistance. It has good impact and pressure resistance performance, so it is widely used in piping project under different conditions.3, High-toughnessIt is not easy to break when suffer with the impact of the internal and external force, and it can be bent under water,and excellent anti-wave.The concave-convex is within 30°of area, can be connected directly on land.4, Low noise in media transportation.Smooth surface, low resistance of fluids, low noise.5, Easy installationThey are convenient to install and need no anti-corrosion treatment or welding work, which can reduce installation difficulty and save lots of working expenses under complex or special environment.
Application
1) Municipal water supply, gas supply and agriculture etc.
2) Commercial & Residential water supply
3) Industrial liquids transportation
4) Sewage treatment
5) Food and chemical industry
6) Garden green pipe network

Certifications
Packaging & Shipping
Company Profile
Shandong Guangdu Pipe Co.,Ltd is professional manufacturer of plastic pipes and fittings with more than 15 years exporting experience. Our company has 30 production lines and covers an area of 20,000 square meters.
Our company's main products are: HDPE,PVC,PP-R,MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields. There are nearly 3,000 kinds of pipes and fittings and valve products of different varieties and specifications.
Customer Visit

With 15 years of exporting experience, we have received friends from all over the world. The friends we met at the exhibition and those who visited our factory all spoke highly of our products. We are business partners, but also friends in life. We hope to have more friends to join our big family.
FAQ Q1: What is the Raw material ? Re: 100% virgin raw material.
Q2: May I get one sample before placing order?
Re: Yes, Sample are available. Samples are for free and you just need to bear the freight.
Q3: Which payment is available for your company?
Re: T/T, L/C . You can choose the one which is convenient for you. Q4: What is your MOQ? Re: As customers' requests. Q5: why choose us? Re: We are a professional manufacturer with competitive price, good quality and fast delivery time. Q6: Can you Offer OEM service? Re: Yes, we can. Q7: What is the shipping port? Re: Qingdao port or Customer designated port.
