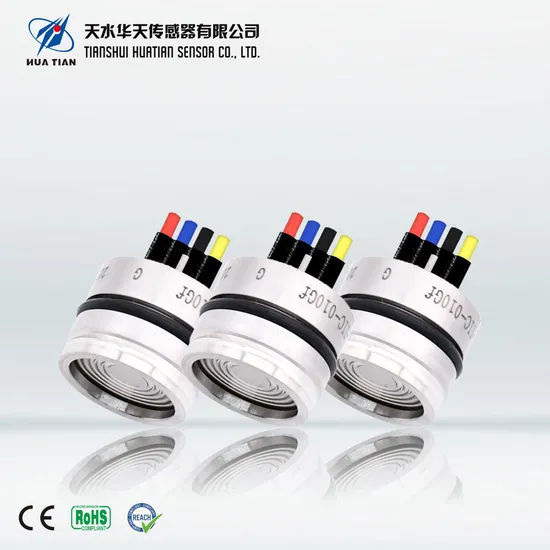

Stainless Steel Four-Wire Huatian Standard Package Hydac Pressure Transmitter Sensors

Product Description

Product Description The sensor can transfer the measurement signals of temperature, pressure and liquid level to I2C digital output. With the fast and accurate interface, the sensor is used to build an Internet of Things using a microcontroller. It can read data and control power on and off to reduce power consumption through microprocessor operation. Features Digital compensation for sensor offset, sensitivity, temperature drift and nonlinearity 32-bit customer ID field for module traceability Digital output of temperature and pressure in I2C bus mode Fast power-on to data output response: 3ms Low power consumption, sleep mode operation, as low as 5 μ A, current consumption depends on the programmed sampling rate Operating temperature: -40°C to + 85°C Wide supply voltage capability: 3.3V/5V Technical Index

Range	-100kPa…0kPa~10kPa…100MPa	Pressure form	Gauge / Absolute
Power supply	5±0.1V DC or 3.3±0.1V DC	Accuracy	±0.5%FS (pressure) ±0.5ºC (temperature)
Overload	2 times full pressure scale	Long term stability	±0.2%FS/year
Operating temperature	-40ºC~85ºC	Storage temperature	-40ºC~125ºC

Material Diaphragm: stainless steel 316L / titanium TA1 Shell: stainless steel 316L / titanium TC4 Pressure lead-in tube: stainless steel 316L Pin lead: gilded Kovar Sealing ring: NBR
Connection

VCC	SCL	SDA	GND
red	yellow	blue	black

Data measurement acquisition operation 1. For read and write operations, the master device commands to start, and sends an ACK(acknowledgement) as a slave device to indicate success. The factory address of the slave device is 0x28, and the communication sequence is shown in Figure 3.
Figure 3 2. Read data sequence is as follows(Figure4, 5)
Figure 4

Figure 5
3.Read pressure typical value

Parameters	Typ	Unit
Zero pressure output (5%)	333	hex
Zero pressure output (10%)	666	hex
Full-scale pressure output (90%)	399A	hex
Full-scale pressure output (95%)	3CCB	hex

Structure

Range	Outline drawing
-100kPa~10MPa
25MPa~100MPa
