Factory cooling tower drift eliminator cooling tower fill packing fill

Factory cooling tower drift eliminator cooling tower fill packing fill

Product Description

Product Description
Factory cooling tower drift eliminator cooling tower fill packing fill
Product Description

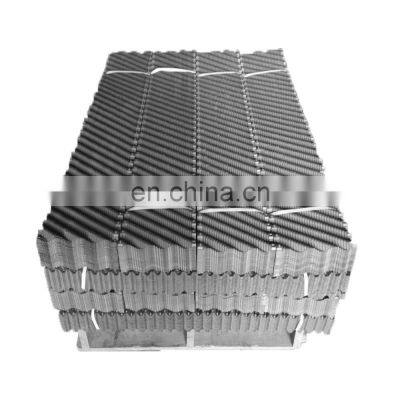

OW cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle bottom in tower. The thickness are 0.28mm-0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm; the pitch distance are 12mm,15mm,19mm and 25mm.
The 19mm is normal size. It is also called CF1900,CF1200. It means the fill will be glue to be a block which size is 305mmx305mmx1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the CF1900 fill to make sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
NameOW cooling tower fill/PVC cooling tower filler/plastic sheet for cooling tower
MaterialPVC, PP
Nomal Size305mmx305mmx1200mm,150*305*1200mm,610*305*1200mm
Fluted size12mm,15mm,19mm and 25mm
Shaping modePlastic extrusion mould
Sheet thickness0.28-0.37MM ,also can be customized
Packing DetailsIn bundle, wooden pallet or as requested
Free Sample Delivery Time5-10dyas
Production DateWithin 30days

Detail of cooling tower fill PVC cooling tower filler plastic sheet for cooling tower fill
150mm width OW cooling tower fill
305mm width OW cooling tower fill
500 width OW cooling tower fill
600 width OW cooling tower fill
Detail of OW cooling tower fill
application of OW cooling tower fill
Packaging of OW cooling tower fill
