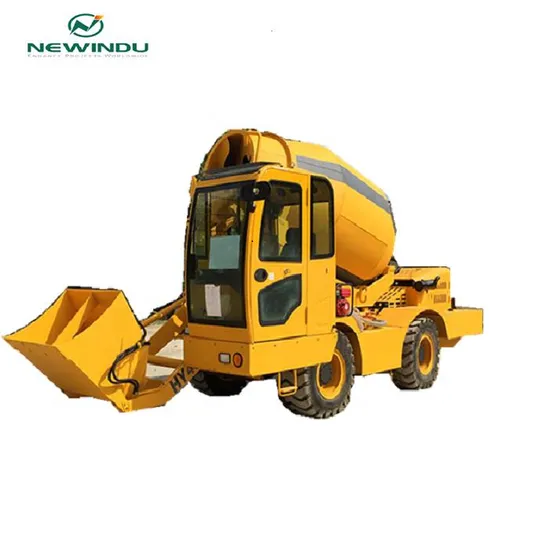

1.6m3 Load Capacity Mini Automatic Self Loading Concrete Mixer Hy160 with Yunnei 60kw Engine in Stock
Basic Info.
Model NO.
HY160
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Wheel Base
2600m
Max. Gradeability
44%
Max. Output
1.6m3
Reclaiming Capacity
1.6m3
Mixing Power
12-14m3/H
Bucket
600L
Transport Package
Nude Package
Specification
5400*2400*3500mm
Trademark
Xuzhou factory
Origin
Jiangsu, China
HS Code
8427209000
Production Capacity
100pieces/Month
Product Description
1.6m3 load capacity mini automatic self loading concrete mixer HY160 with Yunnei 60kw engine in stockDescription: Mobile concrete mixer feature combines self-loading, weighting, mixing and discharging, it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency
Capacity:8-10 cubic meters per hour
Labor-saving
4WD
Loading,pumping,mixing,delivering and discharge.
Swing drum.
Ultimate tank capacity technology can discharge with different angles by chute.
The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.
Loading capacity is larger for the same volume.
The center of gravity is low for the same loading capacity.
High-strength wear-resistant application.
Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.
Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.
Parameter:
| Name | Item | Specification | ||
| Net | 5500 KG | |||
| Transmission | Full Hydraulic | |||
| 4WD | ||||
| Brake | Air Brake | |||
| Chassis | Off-road | |||
| Loader bucket | capacity | 0.4m3 | ||
| Control | Hydraulic | |||
| Tilt angle | 20% | |||
| Speed | High | 0-25KM/H | ||
| Low | 0-9KM/H | |||
| Mini turning radius | 4.5M/R | |||
| Engine | Type | Yunnei | ||
| Rated Power/RPM | 60KW/2200RPM | |||
| Max.Torque/RPM | 360N.M/1400RPM | |||
| Cylinder | 4 | |||
| Starter | Electric | |||
| Cooling type | water cooling | |||
Maxing Drum | Output capacity | 1.6M3 | ||
| Bank Angle | 16 ° | |||
| Chute | Swing Angle | ≥50° | ||
| Angle control | Hydraulic | |||
| Loader control | Hydraulic 4 way stick | |||
| Over size | 5400x2400x3500mm | |||
