Lanhao Automatic Thicker Plate Bending Machine for Electrical Cabinets

Lanhao Automatic Thicker Plate Bending Machine for Electrical Cabinets

US$110,000.00-300,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PA
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Max.Bending Size
3200mm*1500mm
Feeding Structure
Pressing Arm
Max. Bending Thickness
3mm
System Minimum Accuracy
0.001mm
Four Side Forming Min. Inner Size
About 140mm*190mm
Automic Level
Fully Automatic
Core Components
Bearing,Servo Motor,Screw Rod,Line Rail
Minimum Bending Thickness
0.35mm
Transport Package
Common
Specification
PA
Trademark
LANHAO
Origin
China
HS Code
8462230000

Product Description

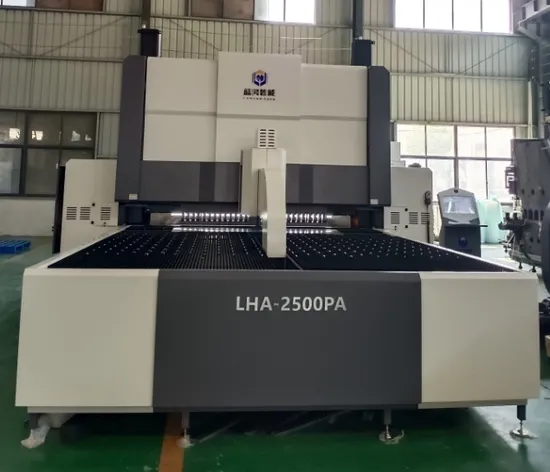

LHA-PA series is a new generation of high-end panel bender created by Lanhao for bending thick plates. It adopts exclusive pneumatic pressing tool patent technology, which is suitable for bending thicker plates and can complete various sheet metal bending processes within 3mm. Disassembly and tool change are more flexible and convenient. Standard with Lanhao patent power hinge knife, through the servo control of the hinge knife expansion and contraction, no lateral shovel force, effectively avoid shovel plate, scratches
Lanhao panel bender is a premium sheet metal automation equipment designed to reduce labor costs and increase production capacity for sheet metal processing enterprises. It offers fast bending speed, high efficiency, and consistent product quality. The equipment automatically positions and bends, effortlessly achieving various bending shapes like circular arc, crushed edge, loop type, closed type, and complex forms using versatile bending dies. It has been widely applied in nearly a hundred fields, including file cabinets, tool cabinets, electrical cabinets, communication cabinets, kitchenware, furniture, ventilation, purification, refrigeration, decoration, doors, elevators, and more.
Product Parameters
LHA-PA Technical parameters
Feeding structure Pressing arm
Work table structure brush
System minimum accuracy 0.001mm
Max bending speed 0.2 second/time
Max feeding speed 90m/min
Max.bending width 2000mm
Max.Bending size L 3200mm X W 1500mm
Max. Bending height
(The maximum bending height after customization can reach 300mm)
170mm
300mm(customizable)
Min. Bending height 3mm
Min.arc radius 0.5mm
Rated power 380V
Motor power 79KW
Average power About 2.8 KW
Noise About 50 dB
Machine size L510cm X W265cm X H330cm
Total weight About 16 tons
User operating environment Win7 or above system
Max. Bending thickness UTS 515N/mm2 304 stainless steel 2.0mm
UTS 410N/mm2 cold panel 3.0mm
UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel thickness 0.35mm
Four side forming min. Inner size About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size About 140mm
Bending angle 0-180 degree
Axis 15
