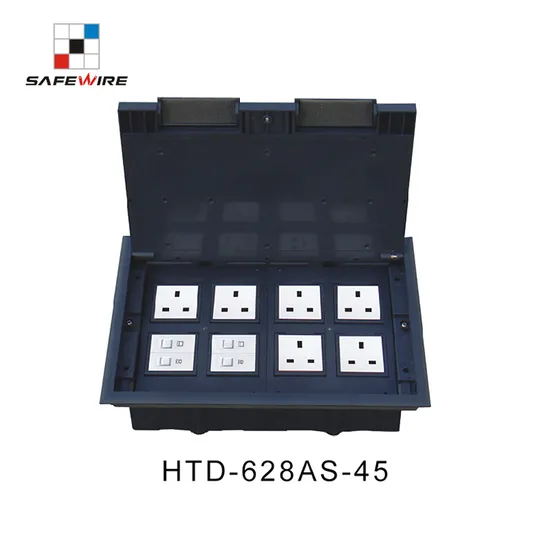

Safewire Htd-628-45: 16 Ways 45*45mm Modules Floorbox, Adjustable Plastic Boxfor Raised Floor or Concrete Floor (additional stainless steel box)

Product Description

Quick Details

Serial No.	Parameter	Description
1	Safewire item	HTD-628AS/SS/SP-45
2	Material	ABS, galvanised steel
3	Overall Frame & Lid (mm)	328*230.5
4	Compact floor cut-out(mm)	(305-310)*(210-215)
5	Thickness of concavity/Frame lid recess (mm)	8
6	Installation depth(mm)	70mm~110mm
7	Plug top clearance(mm)	13~48
8	Available modules	16 modules
9	Accessories plates	90*80mm

Application:
Safewire product range is applied for concrete
floor /raised floor/access floor; carpet, rubber,
Material and wooden floor are suggested.
Filling material is same as floor material.
CE certificate by TUV,Germany LVD test report
Features:
Our floor boxes are boxes for installation recessed in floor with possibilities of add decorative materials like carpet, parquet or other finishes,1.Perfect finish:Our range of access and screed Floor Boxes are available with 1, 2, 3 or 4 compartments and Blends in fully with the surroundings2.Safety guaranty:Frame &lid moulded from high impact ABS plastic material and self-extinguishing, halogen-free materials,guaranty of safety for people and equipment.3.Protected opening system: Easy grip recessed lifting handle and only be opened by pulling both opening clips at the same time. The clips of floor boxes are self-positioning and secure the fastening.4.Easy installation:Clamp fixing of receptacle and Data outlet for fast installation.No junction box is required for installing floor boxes in raised floors.5.The carpet protective frame is overlapping the edge of the floor and is to protect the carpet material against fraying at the edge.6.Add the galvanized sheet bottom box, it can use in concrete floor.
Available sockets or modules types:
HTD-626AS Outline drawing:
Package:4 Pcs inner box into a master carton.Poly bag with box packing.
Attentions:
1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.
2.The sealing ring is closely attached to the smooth surface to prevent water leakage.
3.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
4.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
5.Please close cover when not used.
Safety Warning:
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete floor/access floor.base on different bottom box.
