Fully Waterproof Door Phone Doorbell with VoIP System for Apartment

Product Description

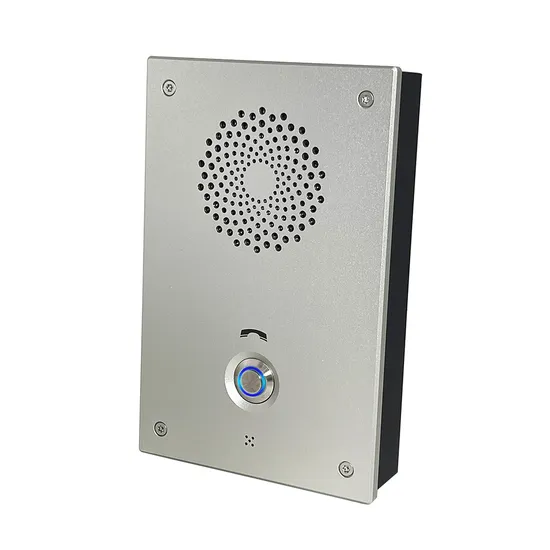

Q504 SIP Intercom & Door Phone The Intercom is based on the embedded Linux OS and industrial standard RFC3261 (SIP 2.0), has high compatibility with major IPPBXs and dispatch systems. This intercom supports two-way voice talking,1~3 speed dial buttons, 2 sets of relay control output input, POE power supply, external power amplifier, etc. This product can be widely used in public emergency places such as commerce, education, logistics, medical treatment, high-speed, barrier and so on.
Highlights
Standard SIP 2.0 protoco 2* RJ45 10/100M Ethernet ports (support POE) 1~3*Programmable buttons 12V power input 2* Short circuit input/output External amplifier G.711A/U,G.722,G723.1,G.726-32,G729AB One-click get IP address and reset Auto provisioning Compatibility with platforms like Broadsoft, VoS,FreeSWITCH and Asterisk/Elastix, etc. Working Temperature: -30 -- 45 ºC Waterproof level: IP57 Dimension: 105*162*30mm Package: Specification & QIG/ Tool Kit/ Ethernet cable (Optional)/ Power Adapter (Optional)

Intercom	Audio
Two SIP lines, supporting SIP 2.0 (RFC3261) and related RFC	Narrowband speech coding: G.711a / u, G.723.1, G.726-32K, G.729AB
Supports two lines RTSP	Broadband speech coding: G.722
Voice broadcast IP addres	Full-duplex speakerphone
Button or remote volume adjustment	DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
Switch signal input and output
Handsfree talking	Physical Specifications
Default auto answer	RJ45 interface:
Dynamic multicast function	Yellow: WAN port 10 / 100M adaptive, support POE
Supports DC or POE power supply	PoE: 802.3af (Class 3: 6.49 ~ 12.95W)
Support for Function key interface	Black: LAN port (Only connected to the original camera)
Support monophonic active speakers	Cable: Super five lines or better
Network time synchronization	1 blue indicator (SIP status and network status)
Action URL / Active URI remote control	Programmable DSS/Soft keys
	1 security screw bag
Networking/ Protocols	Speaker: 8Ohm 2W
Supports PoE (802.3af)	1 way microphone input interface: 58db
Primary and secondary DNS servers are supported	Cables: CAT5 or better
Support VLAN	Shell material: Aluminum plate + stainless steel
Supports SNTP client	Wateproof: applied (IP65)
Support VPN L2TP / PPTP / IPSec	1 DSS key interface (2 lines): Interface:pluggable terminal block
Support for HTTP / HTTPS web pages	Standby power consumption: DC12V / POE 48V
Support Qos: 802.1p / q, DSCP	Housing material: aluminum alloy shell
Supports Web Filter	Installation: Indoor/Outdoor installation
DHCP / static / PPPoE	Operating temperature: -10 ~ 60 ºC
STUN	Storage temperature: -40 ~ 70 ºC
	Relative humidity: 10% - 95%

New generation SIP door phone/ IP intercom brought our by NiteRay Electronic, Q504 is a New VOIP product that work with SIP communication network with Fully Waterproof design. With this door phone, people inside can talk with visitor and open door with their ip phones.
IP Door Phone features:
1, Made of Alloy metal +Stainless steel material
2, Metal wire drawing process face plate
3, IP66 fully waterproof
4, Replay to connect to door lock, NO/NC relay mode
5, Relay time adjustable
6, Use SIP protocol, easy to deploy
7, Can be powered by PoE
8, Directly call to presettelephone
10, High quality conversation voice
11, Full Duplex intercom
12, Auto Answer, Auto hand down
13, Powerful Web management
14, Auto provision via FTP, TFTP
FAQ
1, How can I use the IP door phone if I do not have a IP PBX?
Better you have, IP PBX/server is very important to the door phones.
You could still use the door phone if you do not have, but it just that you run a train on the ground but not the rail.
2, How to use mobile phone to open door remotely?
Once the call astablished, you cold entry the password on the keypad(touch pad can be ok too) to open the door
3, How can I find this IP door phone IP address?
Press the # key and hold for over 10 seconds.
4, Can I install it outside?
Yes, if there might be rain or water, Q504 up to IP66 fully waterproof, it can be installed outside.
5, Is there any logo on the surface and web management? Can I OEM?
NO, can provide OEM if order above 500 pcs, one color silkprint logo on front panel.
6, Does the seting complicated? How many languages does it support
NO, just like most IP products/IP telephones, we have setup wizard on the web management interface. You could set it up step by step.
Currently it supports English and Simplified Chinese
7, What if I don't know how to set the web management? Or the hardware broken?
We will provide technical support for you, or please return to our resellers in your area. The shipping cost will be your duty.
8, How do I know this door phone on working?
Yes it is simple, when you are receiveing the call from the door phone, it is working!
9, What's the power?
You could you PoE or DC adapter.
10, How many warranty do you provide?
1 year warranty. Mail support and hardware guarantee.
11, What's your return policy?
We do not accept return unless there is system fault.

Description	Power status indictor (Bell button with light)
	Bell button
	Dial button
	Mic
	Speaker
Setting	Connect to the network
	Obtain IP address
	SIP account via web
	Speed dial
	Open door
Ethernet port	10/100Mbps
Protocol	SIP & IAX2
Network	Static, DHCP, PPPoE, VPN(L2TP), NAT, STUN, VLAN
Audio codec	G711 A/uLAW, G729, G723.1
Echo cancellation	Full-duplex system
Relative humidity	20% to 85%, non-condensing
Operating conditions	0-40 degree
Metrial	Aluminium alloy, stainless steel
Power	PoE or adapter (9V)
Size	160*108*28mm
Weight	0.68kg
