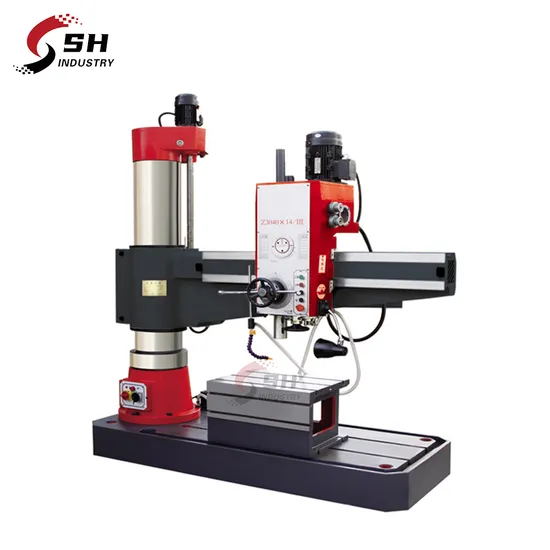

Universal Radial Drilling Machine Z3040X14-III Hydraulic Metal Radial Drilling Machine with Price
| US$7,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X14-III
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Universal Radial Drilling Machine Z3040X14-III Hyd
Max.Drilling Dia(mm)
40
Distance From Spindle Axis to Column Sur
350-1370
Headstock Travel (mm)
1015
Spindle Taper(Mt)
4
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Packaging & Delivery
Package Size
205.00cm * 82.00cm * 248.00cm
Package Gross Weight
2200.000kg
Product Description
Universal Radial Drilling Machine Z3040X14-III Hydraulic Metal Radial Drilling Machine with priceProduct Description
Characteristics:
Hydraulic clamping
Hydraulic transmission
Hydraulic pre-selection
Electrical machinery double insurance
Main technical parameters:
| SPECIFICATIONS | Z3040X14/III |
| Max.drilling dia(mm) | 40 |
| Distance from spindle axis to column surface (mm) | 350-1370 |
| Headstock travel (mm) | 1015 |
| Distance from spindle nose to table surface (mm) | 260-1210 |
| Spindle taper(MT) | 4 |
| Spindle speed steps | 16 |
| Spindle speeds range(r.p.m) | 32-2500 |
| spindle travel (mm) | 270 |
| Spindle feeding steps | 8 |
| Spindle feeding range(mm/r) | 0.10-1.25 |
| Rocker vertical moving speed(mm/min) | 1.27 |
| Rocker rotary angle | ±90° |
| Maximum resistance to the spindle(N) | 12250 |
| Main motor power(kw) | 2.2 |
| Movements motor power (kw) | 0.75 |
| N.W/G.W(Kg) | 2200 |
| Dimension machine(L×W×H) (mm) | 2053 x820x2483 |
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
