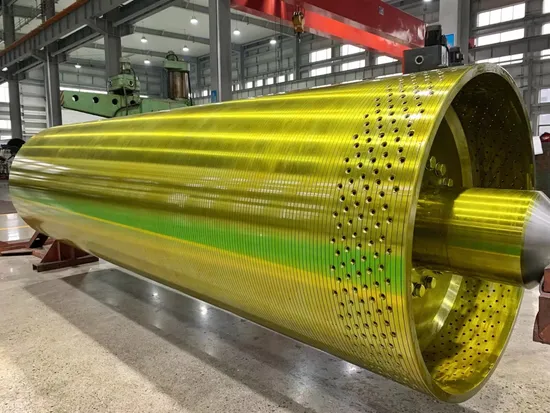

High Speed Winder Drum for Paper Machine

US$3,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Winder Drum

Certification

ISO 9001:2000, CE, ISO14001;ISO45001;ISO50001

Surface Treatment

Rubber or Hard Chrome or Tungseten Carbide

Manufacturing Process

Casting

Material

Carbon Steel

Speed

100-2600mpm

Transport Package

Wooden or Steel Frame Package for Shipping

Specification

12000mm*2200mm *2200mm

Trademark

Daxing

Origin

China

HS Code

8439990000

Production Capacity

6000rolls/Year

Product Description

Company Profile Who we are?
Over 40 years of experience in making rolls for Paper making machinery industry. But we don't just manufacture rolls for using in Paper Production, we also have rich background in Film stretching lines, Non-woven production lines.
Roll for High speed culture paper machine
Roll for High speed board paper machine
Roll for High speed tissue machine
Roll for Pulp machine
Roll for High speed reel
Roll for High speed rewinder machine Our Advantages Our strength:
Max roll/cylinder face length 11900mm
Max roll/cylinder OD 2000mm
Max balancing speed 3000m/min( Roll for Rewinder machine) Certifications General System certification:
ISO9001:2015
ISO14001:2015
ISO45001:2018
ISO50001
The following enterprises periodically audit our company:
Valmet
Andritz Product Parameters Winder Drum

Max Face Length	12000mm
Roll diameter	400-2000mm
Rubber type and thickness	Customer's requirement or Daxing design
Dynamic Balancing	G1.0, with dynamic deflection curve, other info required by customer
Roll body material	Q235B,Q345B
Cylinder head	Cast steel/Forged 42CrMo
Bearing and bearing housing	can be include
