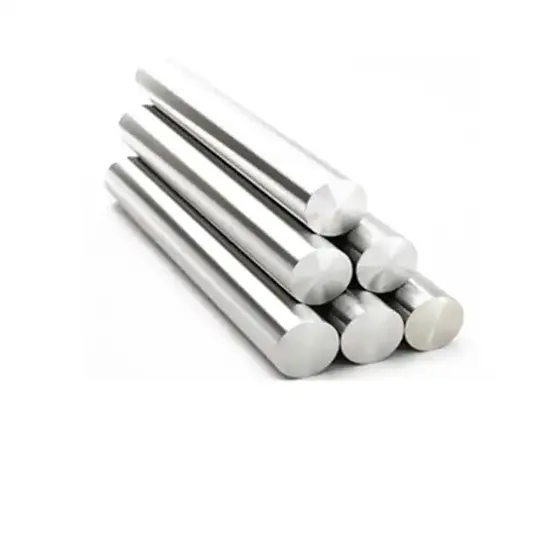

Linear Bearing Axis Rail Rod Shaft Hard and Flexible Bars
Basic Info.
Model NO.
Diameter 6/8/10/12/13/14/15/16/17/18/20/22...120
Journal Surface Roughness
Ra0.1m~Ra0.35m
Material
Beaing, Carbon Steel, Stainless, Bearing Steel
Straightness
0.1mm
Product Length
100mm-8000mm
Hardening Layber Depth
H0.8mm~3mm
Hard Chrome Plateing Thickness
0.015mm~0.02mm
MOQ
1
Customized
Drawing and Length
Load
Drive Shaft
Axis Shape
Straight Shaft
Shaft Shape
Optic Axis
Appearance Shape
Round
Stiffness & Flexibility
Stiffness Shaft/Flexible Shaft
Transport Package
Paper Box /Wooden Box
Specification
Diameter 6~120mm
Trademark
LSWCBE
Origin
China
Production Capacity
1000000
Packaging & Delivery
Package Size
100.00cm * 5.00cm * 5.00cm
Package Gross Weight
3.000kg
Product Description
Product Description
| Product name: | Linear optical axis(hard axis,soft axis,high-precision axis) |
| Material: | 45# steel,Bearing steel,Stainless Steel,42 CrMo |
| Straightness: | 0.1mm |
| Optical axis accuracy: | g6/g8/h7 tolerance -0~5 wires |
| Optical shaft hardness: | hard shaft 58~60 degrees,soft shaft 18~22 degrees,tempering shaft 25~32 degrees |
| Product length: | 200mm~8000mm |
| Optical axis diameter: | 5mm~20mm,22mm,25mm,28mm,30mm,32mm,35mm,40mm,50mm,55mm,60mm,70mm,75mm,80mm,90mm,100mm,110mm,120mm |
| Hardening layer depth: | H0.8mm~3mm |
| Surface roughness: | ra0.1m~ra0.35m |
| Hard chrome plating thickness: | 0.015mm~0.02mm |
| Shaft Rail Series | |
| hard shaft | 3 4 5 6 8 10 12 13 14 15 16 17 18 19 20 22 25 28 30 32 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 |
| flexible shaft | 6 8 10 12 14 15 16 17 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 |
| bearing shaft | 12 16 20 25 30 35 40 50 60Quenching and tempering shaft16 20 25 30 35 40 50 55 60 80 |
| hollow shaft | 12*6 16*10 20*7 20*12 25*11 25*15 25*17 25*19 30*16 30*20 35*25 40*26 40*28 40*30 50*35 50*40 60*50 |
| SBR | SBR10 12 16 20 25 30 35 40 50 |
| TBR | TBR16 20 25 30 |
| SCS...UU bearing block | SCS UU8/10/12/13/16/20/25/30/35/40/50/60 |
| SCS...LUU length bearing | SCS..LUU8/10/12/13/16/20/25/3035/40/50/60 |
| SCE..UU | SCE..UU8/10/12/16/20/25/30/40/50/60 |
| SCE..LUU | SCE..LUU8/10/12/16/20/25/30/40/50 |
| SCV..UU | SCV..UU8/10/12/13/16/20/25/30/35/40/60 |
| SC..AJUU | SC..AJUU8/10/12/13/16/20/25/30/35/40/50 |
| SC..AJLUU | SC..AJLUU8/10/12/13/16/20/25/30/35/40/50 |
| SBR..UU | SBR..UU10/12/13/16/20/25/30/35/40/50 |
| SBR..LUU | SBR..LUU10/12/13/16/20/25/30/35/40/50 |
| TBR..UU | TBR..UU16/20/25/30 |
| TBR..LUU | TBR..LUU16/20/25/30 |
| SK end support | SK8/10/12/13/16/20/25/30/35/40/50/60 |
| SHF endsupport | SHF8/10/12/13/16/20/25/30/35/40/50/60 |
| LM..UU | LM..UU6/8/10/12/13/16/20/25/30/35/40/50/60 |
| LMF..UU | LMF..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LM..UUOP | LM..UUOP6/8/10/12/13/16/20/25/30/35/40/50/60 |
| LME..UU | LME..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LMK..UU | LMK..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LMH..UU | LMH..UU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LM..LUU | LM..LUU6/8/10/12/13/16/20/25/30/35/40/50/60 |
| LMF..LUU | LMF..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LM..LUUOP | LM..LUUOP6/8/10/12/13/16/20/25/30/35/40/50/60 |
| LME..LUU | LME..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LMK..LUU | LMK..LUU6/8/10/12/13/16/20/25/30/35/40/50/60/80 |
| LMH..LUU | LMH..LUU6/8/10/12/13/16/20/25/30/35/40/50/60 |
