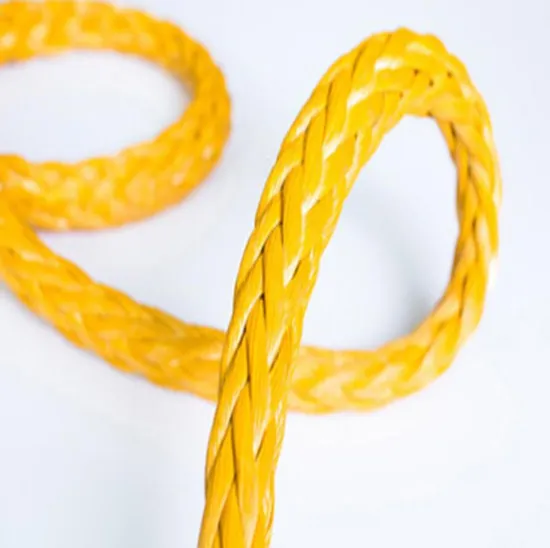

Polyester Cover High Strength 12 Strand Braided Plasma Synthetic Polyethylen UHMWPE/Hmpe/Spectra Rope for Marine Mooring/Towing/Winch/Offshore/Fish/Hawser/Tug
| US$0.45-10.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
UH-12
Type
Braided Rope
Material
UHMWPE
Color
Customered
Length
Customered
Test Report
Supply
Shipping Time
20 Days
Pakage
by Coil
Diameter
2-80mm
Transport Package
Roll
Specification
Diameter: 2mm-60mm
Trademark
JIAOLONG
Origin
China
HS Code
560790
Production Capacity
20000m/Month
Packaging & Delivery
Package Size
61.00cm * 41.00cm * 34.00cm
Package Gross Weight
20.000kg
Product Description
UHMWPE WINCH ROPEHigh strength Ultrahigh molecular weight polyethylene fiber which is stronger than the wire rope of same diameter,and it weights 1/8 of the wire rope,delivered as a plain rope or in combination with jacket. This 12 strands UHMWPE ROPE constantly work on developing new solutions to improve the beneficial characteristics in the main tow rope. 12-strand braided rope with maximum strength-to-weight ratio and size-for-size has the same strength as steel, wire rope replacement with extremely low stretch, superior flex fatigue and wear resistance.
| Applications Seismic Lines Mooring linesWinch linesPick-up linesTug assist linesTow linesFishing LinesSPM hawsersSubsea installation linesWire rope replacementPennantsLifting SlingsGrommetsMessenger Lines | Special Properties Stronger than steel wire on corresponding diameter8 times stronger than steel with same weightFast and easy to spliceFloatsHigh abrasion resistanceLong service lifeFlexible and easy to handleHigh safety - low kinetic energy (low lash back)Torque freeDielectric and resonance properties |
* Fiber:UHMWPE
* Construction:8 & 12 strands
* Specific Gravity:0.98(Floats above water)
* Melting point:148ºC
* Elongation at break:≤4.0%
* Abrasion Resistance:Excellent
* U.V. Risistance:Good
* Temperature Resistance:±10%
* Weight and Length tolerance:±5%
Data Sheet:
| DIA | WT | MBL | |
| MM | KGS/100M | Ton | KN |
| 6 | 2.3 | 3.6 | 35.0 |
| 8 | 3.9 | 5.7 | 55.8 |
| 10 | 5.9 | 9.2 | 90.0 |
| 12 | 9.5 | 13.2 | 129.5 |
| 14 | 12.8 | 16.5 | 161.9 |
| 16 | 16.0 | 20.6 | 202.4 |
| 18 | 20.8 | 26.3 | 257.5 |
| 20 | 25.5 | 31.2 | 305.3 |
| 24 | 35.8 | 43.5 | 426.8 |
| 28 | 46.5 | 57.8 | 566.2 |
| 32 | 57.0 | 69.1 | 677.2 |
| 36 | 68.0 | 88.5 | 867.2 |
| 40 | 84.0 | 108.1 | 1058.9 |
| 44 | 102.0 | 129.3 | 1267.4 |
