LHD HOWO Self-Loading Compactor Sinotruk Garbage Truck Heavy Duty Truck Swing Arm Garbage Truck with Compactor Garbage Cargo Truck

Product Description

Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 25cbm. 2. Hydraulic Control Loading & Unloading System. 3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type. 4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material. 5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped. 6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck. Product Parameters

product name	13 m³ compression garbage truck	model	LSXC5180ZYS5
cab	flat top	Engine horsepower (PS)	240PS
Dimensions (mm)	8500×2500×3400	driving style	Steering Wheel / Left Drive
Weight (kg)	10000	Loading mass(kg)	10000
Production cycle	1 set (60 days)	warranty period	one year
Product parameters (main configuration)
Item Item		Specification Standard Specification
cab		FVR cab reversible with air conditioner
front bridge		6.3 tons
rear bridge		13 tons
gearbox		MLD six-speed transmission
vehicle frame		Straight through reinforced girder
tire		295/80R22.5 type tubeless tire 6 pieces
Power take-off interface		have
PTO		have
Front/rear overhang (mm)		Front: 1335, Rear: 2665
departure angle		Front: 20, Rear: 17
suspension		Leaf spring 9/7+7
leaf spring		Front 9, back 7+7
Number of axles		2
Wheelbase (mm)		4500
Number of tires		6
Wheel base (mm)		1960/1860
drive type		4*2
engine		6HK1-TCL 240 horsepower
Emission Standards		Euro five
suspension		leaf spring
driving style		steering wheel, left-hand drive
brake		Drum
Braking System		air brake
spare tire rack		have
light		have
Voltage		24V
toolbox		have
color		According to user requirements
Upper part configuration
Item Item		Specification Standard Specification
Waste box material and thickness		Q345 low alloy anti-corrosion and wear-resistant plate (manganese steel) side 5mm, bottom 5mm, side plate 5mm
Box shape		Curved box
emergency stop button		have
safety control system		have
sewage tank		have
Tail electronic control device		have

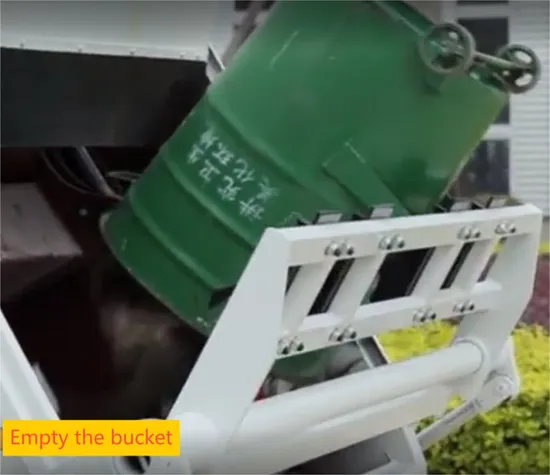

Remarks: Oil cylinders of domestic famous brands, high-density and high-pressure oil pipes, multi-way valves and oil pumps are used, and the small landing bucket is turned over. The compressed garbage bin is a conjoined type, flipped to feed, with a compressed push plate and a locking door at the rear.

Detailed Photos
Our Advantages Manufacturer can customized as you want
After Sales Service
FAQ Q1: Are you original manufacturer?
A: Yes, we are professional manufacturer of special trucks
Q2: What is your terms of payment?
A: 30% by T/T as deposit, and 70% by T/T before delivery. Also we accept 100% confirmed irrevocable sight L/C. We will show you the photos and videos of the products and packages before you pay the balance.
Q3: Could your company totally customize products for me?
A: Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
Q4: Do you provide certification that we need?
A: Yes, we can provide various certifications, such as CCC, ADR, ASME, BV, DOT, SASO, SGS, and so on. We will provide directly or apply for new certificate according to your needs.
Q5: How about the delivery time?
A: It depends on the product type and quantity you need,usually the production cycle of one unit truck is 15-25 days.
Q6: What is your terms of packing?
A: Truck will be nude, waxed or packed in waterproof cloth according to the shipping way. Small truck can be shipped in container. Big trucks will be shipped by RORO ship, bulk ship or Flat rack container.
Q7: Do you test all your goods before delivery?
A: Yes,we will 100% test before delivery, and ensure zero defect products to all our customers.
