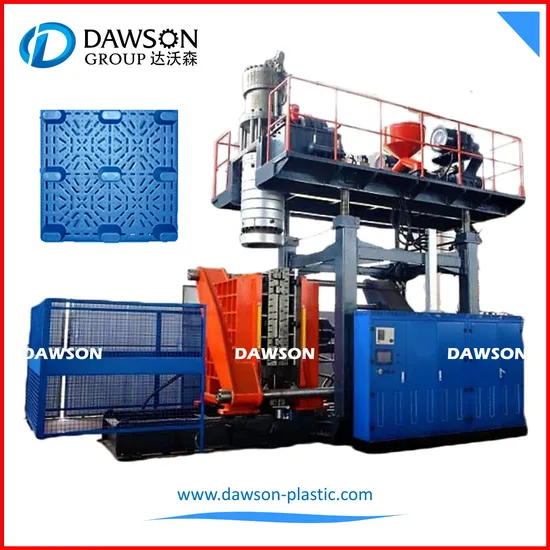

Accumulation Plastic Pallet Blowing Moulding Machine
| US$38,000.00-66,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLD120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Drum, Plate, Float, Roadblocks, Medical Bed Board
More Application
Road Barrier, Traffic Barriers, Tool Boxe
Other
Autoparts, Car Bumpers, Car Spoilers
Transport Package
Film Packaging
Specification
ABLD120
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
as Per Samples
Product Description
Extrusion blow molding machine ABLD120
| Basic parameters | Suitable material | PE | |
| Max volume | 250L | ||
| Output capacity | 20~25 pcs/h | ||
| Size | 8.6×3.8×5.8 (M) | ||
| Weight | 38 T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮120mm,L/D ratio 28, 38CrMoALA | Cooling system available | |
| Plasticization | 320~400 Kg/H | HDPE | |
| Heating Zone | 5~6 Aluminum Heater | Automatic heating | |
| Heating power | 36KW/H | ||
| Extrusion Motor | Motor 132kw (380V,50HZ) | ||
| Cooling Fan | 5~6zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮600mm | ||
| Heating zone | 6 Stainless steel heating cycle | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 850~900KN | ||
| Template distance | 850~1850mm | ||
| Max mould size | 1200X1800mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) 22kw | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 1Mpa | ||
| Air displacement | 1.8M3/min | ||
| Electromagnetic valve | AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 18t/h | ||
| Water pressure | 0.3-0.6MPa | ||
