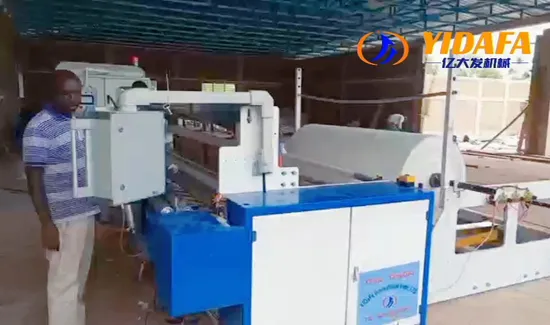

1 Set Small Toilet Paper Making Machine Packing for Sale in China

1 Set Small Toilet Paper Making Machine Packing for Sale in China

US$9,000.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YDF1880MODEL
Certification
ISO 9001:2000, ISO 9001:2008
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Wool Roller
Toilet Paper Type
Without Core
Function
Rewinder
Product Name
Toilet Tissue Paper Roll Rewinding Machine
Reeling Speed
150-200m/Min
Perforation Pitch
4 Perforating Blade 90-160mm; 2 Perforating Blade
Parameter Setting
PLC Screen Operation System
Unwinding Unit
1-3 Layers15-30GSM
Embossing Bottom Roller
Felt Roller, Wool Roller and Rubber Roller (Depend
Unwinding Unit Driving
Gear Box Driving
Edge Embossing Unit
Steel to Steel
Transport Package
Wooden Case/Wooden Pallet
Specification
Depend on the machine model
Trademark
YDF
Origin
China Shandong
Production Capacity
2 Sets

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg

Product Description


Product description
1.Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. It has replaced the traditional sealing of rolls with international popular trimming and sealing,which can have 10-18mm tails to facilitate to start pulling out the paper.At the same time,it can greatly cut down the wastage of the paper,thus to cut down the production cost.
2. Adopts international advanced PLC programmable controlling technology, man-machine interface operation.In the rewinding process,first tight then get loose,to avoid the problems that the cores are loose from rolls after long time storage.
3.Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
4.Adopts 4 pieces high precision spiral perforating blade, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; and individual web tension control unit for each unwinding jumbo roll.
6.Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Specification of Toilet Paper Roll Rewinding Machine
Model
1092
1575
1880
2400
2600
3150
3500
Width of raw paper (mm)
1200
1800
2100
2400
2500
3000
3500
Dia. of finished paper
60-150mm(tightness adjustable)
Dia. of finished paper core
32-50mm
Dia.of raw material
1100mm(other sizes are available)
Dia of core of raw material
76.2mm(other sizes are available)
Perforation pitch
4 perforating blade 90-160mm; 2 perforating blade 180-320mm
Reeling speed
150-200m/min
Parameter setting
PLC screen operation system
Unwinding unit
1-3 layers15-30gsm
Pneumatic system
3HP air compressor,Min.Pressure 5kg/cm² Pa (provided by customers)
Power
5.5-15kw
Overall Dimension(L*W*H)
6200*2600*1800-6200*4000*1800mm
Weight
3800-9000kg
Embossing
Single ply embossing, two side embossing and steel to steel embossing(depend on selection)
Embossing bottom roller
Felt roller, wool roller and rubber roller (depend on selection)
Unwinding unit
1-3 ply
Unwinding unit driving
Gear box driving
Edge embossing unit
Steel to steel

Yidafa company is a professional manufacturer of paper and paper products making machine. We focus on toilet paper machine, tissue paper machine, kitchen paper machine,hand towel paper machine and other equipments.
We also support customized machine which according to clients`special requirements.With high degree of automation and excellent quality and competitive price, our machines are popular with both home and abroad. Such line the Middle East, America, Africa, Southeast Asia,Europe and other countries and regions.
1. The business contact on both sides will reply within 16 hours .
2.During warranty period, the company provide the relevant technical services for free,such as equipment quality problem resulting from the design and manufacturing equipment, which the company will be responsible for replacement and maintenance.
3.After the expiration of the warranty, our company provide customers with a lifelong technical
service and spare parts with preferential price and efficient manner over a long period of time.
1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price. In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
