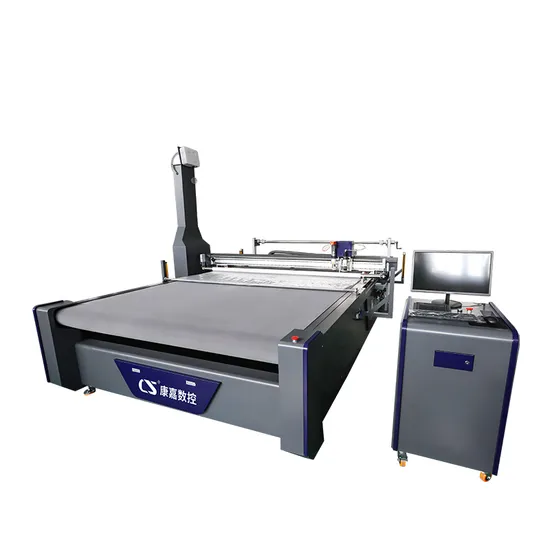

Automatic CNC Digital Oscillating Knife Cutter Machine for Non Woven Fabric

Product Description

Product Description
Product Parameters

model	PDS-SL1615	PDS-SL2015	PDS-SL1825
Effective cutting area	1500*1600(L*W)	1500*2000(L*W)	2500*1800(L*W)
Operating mode	automatic	automatic	automatic
Voltage	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ	110V/220V/380V±10%, 50HZ 60HZ
Cutting speed	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)	max 1400mm/s (Elite version)
Cutting thickness	≤50mm	≤50mm	≤50mm
Power	9KW	9KW	9KW
Cutting accuracy	±0.1mm	±0.1mm	±0.1mm
Cutting Materials	Flexible Materials	Flexible Materials	Flexible Materials
Material fixation method	vacuum adsorption	vacuum adsorption	vacuum adsorption
Control system	LED touch screen	LED touch screen	LED touch screen
Transmission interface	USB /inernet port	USB /inernet port	USB /inernet port
Drive motor	Panasonic(Elite version)	Panasonic(Elite version)	Panasonic(Elite version)
Rail	PMI	PMI	PMI
Safety device	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision	emergency stop button, infrared beam, anti-collision
Architecture	integrated framework	integrated framework	integrated framework

The vacuum adsorption pump adopts an integrated aviation aluminum shell, which is fire-proof, corrosion-resistant, and
rust-free. The tube has a built-in silencer sponge, which is cushioning and noise-reducing. Equipped with infrared induction blocking, anti-collision and emergency stop devices to ensure
safety. The cutting area has an intelligent infrared sensor stop function. If there is an obstacle or the hand reaches in during the processing, the machine will automatically pause to ensure safety; there are anti-collision functions on both sides of the beam, and the collision will stop to ensure safety; in addition, the equipment is equipped with an emergency stop. button, and continue cutting in situ after emergency stop. Detailed Photos
1. High-precision servo motor, optional Delta or Panasonic brand, multi-functional real-time automatic gain adjustment; with super strong vibration suppression function. 2. The whole machine is welded with thick-walled seamless steel structure and treated with high-temperature tempering. It is finished by CNC machining center to ensure high precision, no deformation and long service life. 3. Magnesium-aluminum alloy vacuum adsorption table, hard oxidation and other processes, durable and non-deformable, high flatness, uniform suction. Application
Vibrating knife cutting machines are widely used in clothing, bags, shoes, printing, packaging, advertising, and automotive interior mats. In the clothing, bags, and shoes industry, it is often used as a cutting machine; in the printing, packaging, and advertising industry, it is called a computer cutting machine or a sample cutting machine; in the automotive interior mat industry, it is still called a vibrating knife cutting machine. Company Profile
Quality:
Integrated welding frame body,the preferred parts work stable,long service life. Service:
Lifetime after-sales, 24-hour standby service free update software,version and other regular visits.
Secure:
Infrared induction + mechanical collision avoidance system is safer and more assured.
Feature:
Eight kinds of cutter head interchange, meet a variety of materials cutting,punching.indentation,etc., One machine multi-purpose support multi-cutter head equipment customization. Precision:
Higher cutting accuracy. The error is within 0.lmm.
Environmental protection:
Cold cutting dust-free, smoke-free,natural environmental protection does not destroy the material
Brain power:
Automatic cutting equipment, automatic plate holding software. Save materials and eliminate waste. Packaging & Shipping
FAQ Q: 1. How can I choose a suitable cutting machine? A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut?
2)What's the largest size of original materials?
3)What's the thickness of materials?
Q: 2. Can you design a machine for me depending on my requirements? A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could match all your requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future? A: We supply online technical support and door to door service. Anything confuse you, just contact us.
Q: 4. What's the warranty policy? A:Standard warranty is 12 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
Q:5.What is the Price and payment terms? A:EXW,CIF,FOB we all can accept payment:TT/Paypay/LC/Western Union.etc
Q: 6.What's the package? A: Film packaging+wooden case. Fumigation-free plywood case is also available.
