1100 aluminum plate

Product Details

Product Description

Product Description

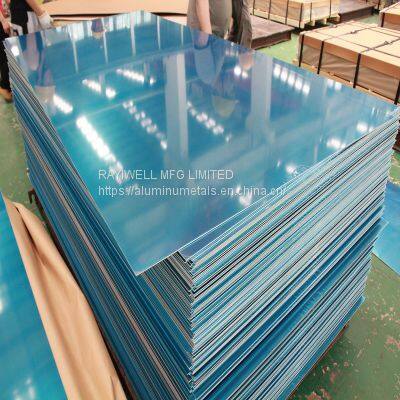

Aluminum sheet is any aluminum sheet metal thicker than foil but thinner than 6mm; it comes in many forms including diamond plate, expanded, perforated and painted aluminum sheet. Aluminum plate is any aluminum sheet metal that is thicker than 6mm
Temper of aluminum sheet: O, H, W, F, T
H:H12, H14, H16, H18, H19, H22, H24, H26, H32, H34, H111, H112, H114, H116
T: T0-T651
Size of aluminum sheet
Thickness:0.2-6.0mm
Width:100-2400mm
Length:200-11000mm
Mother coil: CC or DC
Weight: About 2mt per pallet for general size
MOQ: 5-15 ton per size
Protection: paper inter layer, white film, blue film, black-white film, micro bound film, according to your requirement.
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Standard product: GBT3880, JIS4000, EN485, ASTM-B209
Delivery time: about 30days after receiving the deposit
Payment: T/T, L/C at sight
Trading terms: FOB, CIF, CFR
Application of aluminum sheet
Aluminum sheet is used in construction material and building material. Including: roof panel, ceiling, in-wall, partition wall, shutters, window blind, gate, balcony, wall, road marking, street signs, road protecting plate, highway protecting plate, bridge carrier wall, scaffold, ship plate, etc.
Aluminum sheet is used in electric machine components. Including: protective plate, protective box, capacitor box, tank of power capacitor, electrolytic condenser, variable of battery, volume shaft, loudspeaker framework, switch plate, semi-conductor radiator, magnetic disk, motor frame, fan blade, electric cooker, cooling fin, heat sink, etc
Aluminum Name:
1000 series:1050,1060,1070,1080,1100,1145,1200,1235, etc.
2000 series:2014,2017,2018,2024,2025,2219, 2219,2618a etc.
3000 series:3003,3004,3102,3104,3105,3005, etc.
4000 series:4032,4043, 4017, etc
5000 series: 5005,5052,5454,5754,5083,5086,5182,5082, etc.
6000 series:6061,6063,6262,6101, etc
7000 series:7072,7075,7003 etc
8000 series: 8011, etc.
Aluminium Tread Plate (or Checker Plate) is a smooth sheet with a regular diamond pattern on one side. It is used for flooring, cladding, tool boxes, ramps or anything that requires an ultra-hard wearing property
Aluminium tread plate can be used for a wide range of construction and structural purposes. This is because of its lightweight, durable, low maintenance quality.
Aluminium Chequered Plates is a light weight metal panel used as architecture decorative panels.
Excellent rust resistance and fire resistance make the Aluminium Chequered Plates panels high grade building materials in modern architectures:
Façade, windows, doors, ceiling panel tiles, decorating panel and curtain walls;
Household appliances: refrigerators, microwave ovens, audio equipment, etc.
Metal floor Plate: Automobile, airplane, light rail, vehicle steps, stair treads, elevators, etc.
Aluminium chequer plate panels and corner guards are designed for heavy duty surface protection. Strong and durable, aluminium chequer plate is ideally suited for use in areas subject to frequent, heavy wheeled traffic e.g. service corridors, loading areas and car parks.
The profiles are light weight, easy to install and keep clean. Aluminium chequer plate panels and corner guards reduce maintenance costs by eliminating the need to repair and repaint wall surfaces. The embossed chequer pattern conceals the effects of any surface damage caused by wheeled traffic and is suitable for both interior and exterior environments.
Aluminium Chequered Plates can be supplied with diamond pattern checkered in one bar, three bar and five bar
