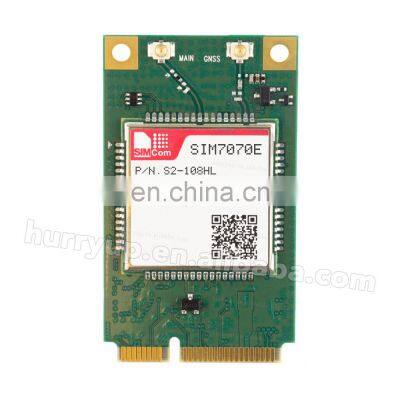

SIMCOM SIM7070 LPWA Module, 4G SIM7070E LTE Module SIM7070G

Product Description

Product Description
DescriptionSIM7070-PCIE SeriesSIMCom LPWA ModuleProduct DescriptionThe SIM7070-PCIE series is the LPWA module which supports wireless communication modes of Cat-M/ Cat-NB/GPRS/EDGE.The SIM7070-PCIE series adopts Mini PCIe form factor. It is easy for customers to integrate.The SIM7070-PCIE series has powerful expansibility with abundant interfaces including UART, USB etc. The SIM7070 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.Key Benefits● The SIM7070-PCIE series provides deeper coverage enhancement compared to GSM● The form factor and AT commands of the SIM7070-PCIE series are compatible withSIM7000/SIM900/SIM800FModule VariantSIM7070G-PCIESIM7070E-PCIEForm FactorMini PCIeMini PCIeDimensions(mm)50.8*30*4.950.8*30*4.9Frequency BandsCat-MB1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B31/B66/B72/B85Cat-NBB1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/ B26/B28/B66/B71/B85B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B31/B66/B85GSM850/900/1800/1900MHz850/900/1800/1900MHzLTE RF Power ClassClass 5 (Typ. 21dbm)Class 5 (Typ. 21dbm) Class 2@B31&72GNSSooTemperature-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage Range(V)3.3~ 4.3, Typ 3.83.3~ 4.3, Typ 3.8Power Consumption (mA)@Sleep22@Idle1515Data TransferCat-M(Kbps)589(DL)/1119(UL)589(DL)/1119(UL)Cat-NB(Kbps)127(DL)/158.5(UL)127(DL)/158.5(UL)EGPRS(Kbps)296(DL)/236.8(UL)296(DL)/236.8(UL)Software FeaturesProtocolTCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTTTCP/UDP/HTTP/HTTPS/FTP/TLS/DTLS/PING/ LWM2M/COAP/MQTTFOTA●●Firmware UpgradeUSB/FOTAUSB/FOTAInterfacesSIM Card1.8V1.8VUART●●USB●●CertificationRegulatoryFCC/IC/CE/RCM/JATE*/TELEC*/NCC*/ ANATEL*/GCF*/PTCRB*/RoHS/REACHCE/RCM/RoHS/REACHCarrierAT&T*/VERIZON*/TMOBILE-US*/SPRINT*/ ROGERS*/TELSTRA*/VDF*/SoftBank*/ DoCoMo*/KDDI*●: support o: optional * : on goingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
