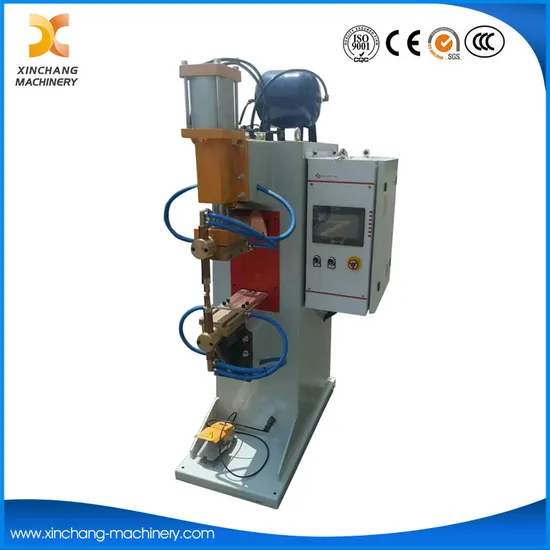

Mfdc Pneumatic Inverter DC Spot Welding Machine with ISO CCC

Product Description

Product Description
Features:
1, Use medium frequency inverter controller, welding current is DC, 1000Hz, so welding current is more stable.
2, 50% Saving energy.
3, Better quality. Comparing with traditional AC welders, the welding stability and concordance are better, as less crator, more beautiful, more firm.
4, There phase power supply input evenly, lower shock to Power Grid.
5, Equipped with PLC touch screen, LED display clearly, easy to adjust and operate
Constitute:
1, Machine body of thick steel sheet, not easy to deformation
2, Microcomputer control, accuracy and steady
3, Water cooling transformer: There is cooling water in inside, using full copper alloy core, reducing impedance, improving the utilization of power, 50% duty cycle to ensure the requirement of long time welding, big output power.
4, Fast solenoid valve, making welding speed faster, thereby the productivity is higher, therefore decreasing cost.
5, Cylinder adopt high accurate, anti-friction hard material, which is duralumin, without rust, lower friction, lower noise and loading is faster, thereby reducing the weld spatter.
It is special suitable for spot welding of Aluminum and Copper material.
Product Parameters

Model		DTMZ-12	DTMZ-28	DTMZ-50	DTMZ-90	DTMZ-160	DTMZ-250	DTMZ-2× 160	DTMZ-2× 250
Rated capacity	KVA	12	28	50	90	160	250	320	500
Primary voltage	V	500	500	500	500	500	500	500	500
Max current firstly input	A	55	140	340	600	840	1280	1680	2560
Max current secondary output	KA	7	12.8	20	25	30	42.9	60	80
Secondary voltage	V	6.0	7.5	8.0	10.0	10.8	12.5	10.8	12.5
Cooling water flux	L/min	6	6	8	8	10	10	12	12
Duty cycle	%	20	20	20	20	20	20	20	20
Atmosphere temperature	º C	0-30	0-30	0-30	0-30	0-30	0-30	0-30	0-30
humidity	%	90	90	90	90	90	90	90	90

Detailed Photos
Company Profile
We, Ningbo Xin Chang Machinery Co.,Ltd are a professional designer and manufacturer in friction welding machine, resistance welding machine and Heat exchanger equipment. Our factory is in this line more than 20 years, we have more than 10 senior mechanical and electrical specialists and total more than 200 staff, our machine is famous in China. We have CCC, ISO9001 and CE certificates.
Over the years, we have exported so many machines to 30 and more countries, such as France,Spain,Poland,Russia,Indonesia,Vietnam,Pakistan,India,Mexico,Egypt etc.
Our main products are Heat exchanger equipment, Friction welding machine, spot welding machine, projection welding machine, butt welding machine, seam welding machine, multi head welding machine for wire mesh, and other various special welding machine for metal connection in different industries.
We always adhere to the management idea of "Integrity, profession, innovation, and win-win", to make Xin Chang becomes trustworthy enterprise of customers. Good product quality, perfect after-sales service, and professional technical support make customers choose no regrets and worry-free use.
FAQ
1.Q: What about your standard delivery date ?
A: Usually 30-60 working days. Our company provide just-in-time delivery
2.Q: How can you guarantee quality?
A: You could test samples before order,and we have professional QC and precise machining equipment; Always final Inspection before shipment;
3.Q: How long is the guarantee?
A: For one year after the custumer received the machine.
4.Q: What do we need to do if the machine fails?
A: In the guarantee time (1 year),we will send the spare parts to you for free,and provide the technical consultant for any time.
5.Q: Can I make my own design and logo on the product?
A: Yes, we do OEM.Welcome global partners.
6.Q: what is the packing mode?
A: wooden case or FCL with container.
7.Q: what is your after-sell service?
A: After-Sales
1) Training your workers how to install the machine, how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
