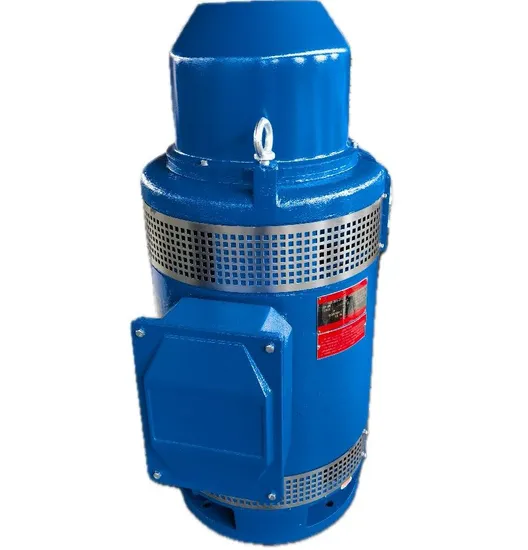

Premium Efficiency Vertical Hollow Shaft Three Phase Induction Vhs Motor
| US$1,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VHS180
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
y-δ Starting
Certification
ISO9001, CCC
Brand
Semc
Name
Vhs
Fundction
Deep Well Pump
Type
AC Motors
Mouting
V3
Transport Package
Plywood and Steel Frame
Specification
Iec, CE, Nema, CSA
Trademark
SEMC
Origin
China
HS Code
8501520000
Production Capacity
5000
Product Description
We sale VHS IEC motor 2018VHS series
1) Type: VHS series vertical hollow shaft motor (WP-1)
2) Technical standards:
A) Rated output grade: The IEC standard
B) Protection degree: Weather-protected type1 (drip-proof)
3) Can sustain heavy axial thrust load
4) Compact and reliable structure
5) Easy maintenance
6) Usage: Suitable for vertical pumps, especially for deep well vertical turbine pumps, Widely used for pumping underground water in mines, factories, farms and cities
7) Enquiry information required: Output (HP or kW), speed, voltage, frequency, insulation class, ambient temperature, non-reverse backstop (if required), starting Method (if not specified, the downthrust load would be standard)
8) Motors with rated voltage below 500V, frequency of 60Hz, class B or F insulation available
9) We also supply vertical hollow shaft motors for special purposes Comply with super high energy efficiency of 96%, F insulation grade, SF1.15, suitable for working at 1500-2000 meters above sea level, and pass UL and EU CE certification
| VHS Motor Model:VHS444TP-4-150P, WP1,IP23, 150HP, Speed:1800rmp/min; NEMA stand ,Downthrust Extra 12800Lb,double bearing; |
| VHS Motor Model:VHS444TP-4-175P, WP1,IP23, 150HP, Speed:1800rmp/min; NEMA stand ,Downthrust Extra 12800Lb,double bearing; |
| VHS Motor Model:VHS445TP-4-200P, WP1,IP23, 200HP, Speed:1800rmp/min; NEMA stand ,Downthrust Extra 12800Lb ,double bearing; |
| VHS Motor Model:VHS445TP-4-250P, WP1,IP23, 250HP, Speed:1800rmp/min; NEMA stand ,Downthrust Extra 12800 Lb ,double bearing |
| VHS Motor VHS447TP-4-300P, 300HP, WP1,IP23,300HP, speed: 1800 NEMA Extra 14000LB ,double bearing |
| VHS MOTOR VHS5006TP-4-350P, 350HP,WP1, IP23,350HP, speed: 1800 NEMA, Etra. 14000LB ,double bearing |
| VHS MOTOR VHS5008TP-4-400P, 400HP,WP1, IP23,350HP, speed: 1800 NEMA, Etra. 14000LB ,double bearing |
| VHS motors | IEC or NEMA | |
| insulation | F,C,H | |
| POWER: | 10HP-200HP 250HP-500HP 600-1000HP 1200-2000HP |
