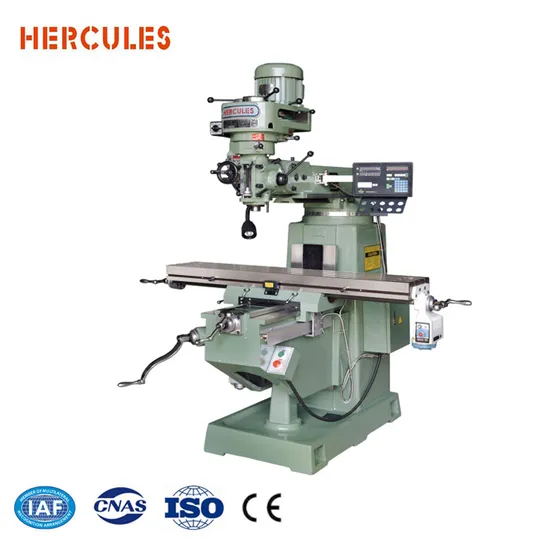

Diesinking Precision M3 Universal Vertical turret type milling drilling machine
| US$3,300.00-7,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
M3/M4/M5 Vertical milling machine
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
nature
Metal working machine
Transport Package
Pallet
Specification
1750*1500*2100
Trademark
Hercules
Origin
China
HS Code
8459699000
Product Description
M3 Universal Vertical turret type milling drilling machine| Model | M3(M3E) | M4(M4E) | M5(M5E) |
| Economic Series | |||
| Table size(L*W)(mm) | 1270x254 | 1370x254 | 1370x305 |
| Max.load of table (kg) | 300 | 300 | |
| X axis(mm) | 900 810 with power feed | 1000 900 with power feed | |
| Y axis(mm) | 400 | 430 | 440 |
| Z axis (mm) | 400 | 440 | 480 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63 | 3-15.88x63 | 3-15.88x63 |
| Distance between spindle and table(mm) | 45-450 | 40-480 | 20-500 |
| Ram travel (mm) | 380 | 500 | |
| Travel of spindle quill (mm) | 120 | 120 | |
| Auto crossward feed(mm/rev) | 0.04,0.08,0.15 | 0.04/0.08/0.15 | |
| Spindle speed(rpm) | 80-5440rpm 16steps | 70-3600rpm 10steps | |
| Spindle hole taper | R8 / NT30 (optional ) | NT40 | |
| Main Motor | 3HP | 5HP | |
| Tilt angle for milling head | left and right±90º forward and backward±45º | left and right±90º | |
| Guiding tracks(X.Y.Z) | all dovetails | dovetail/square/square for X/Y/Z | |
| Dimension(L*W*H)(mm) | 1750x1500x2100 | 1750x1650x2150 | 1850x1650x2300 |
| Milling head | Round step milling head | Round step milling head | Square head with side brake |
| Weight (kg) | 1100 | 1300 | 1450 |
| Optional milling head : Round step milling head ; Square head with side brake milling head ; Variable stepless milling head | |||
| Hercules Machinery Equipment Ltd. | |||
