PVC Auto Dosing Conveying System for Powder Pellet Granule Material

Product Description

Pneumatic Conveying System This powder/granule/pellet pneumatic conveying system is specially designed for long distance big capacity conveying, it can convey material up to 500meters in horizontal distance, now this high efficient pneumatic conveying system has been widely used in chemical industry, plastic& rubber industry, food industry, etc. our company has rich experience in providing system solution for powder/pellet material conveying mixing dosing handling, we have many succussful projects at domestic and abroad market.
For plastic industry:
The plastic industry was one of the first industries to recognise the benefits of pneumatic handling of material and processing, our company has designed and installed many turnkey systems for many polymar produceers and users, nowadays, this pneumatic conveying system has been adopted and used for many window & door profile factory, PVC pipe factory, SPC/LVT/WPC flooring factory, etc.
Our pneumatic conveying system characteristic: Extremely high efficiency Dust-free, closed system Hygienic and operator-friendly Space and height saving design Flexible configuration of pipes Reliable conveying Gentle and low-wear for product and plant In principle, the conveying of bulk materials in the production process can now be automated in virtually all instances. A variety of pneumatic conveying solutions is now available for using according to raw material type, the nature of the task and the available space.

In principle, pneumatic conveying systems are differentiated in pressure and vacuum mode. A combination of these both systems is also possible.

Vacuum conveying systems
Vacuum pneumatic conveying systems are best employed where the product is to be conveyed from several feeding points to one delivery point. Product channelling is extremely simple and dust-free since there is no excess pressure

Pressure conveying systems
Pressure conveying systems are best employed where the product is to be conveyed from one feeding point to several delivery points over long distances. Since the product has to be conveyed against the air pressure, locks or pressure vessels are required. Product delivery is under atmospheric pressure and however simpler.

Vacuum pressure conveying systems
Conveying systems combining suction and pressure are best used where the product is to be conveyed from several feeding points to several delivery points.

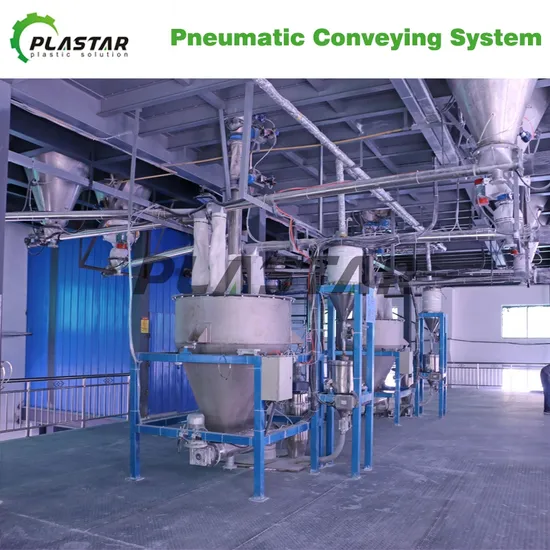

Below is our conveying system picture:
The above machine is vacuum conveying tank or blowpot, it is very suitable for long distance conveying of powder or pellet material, it has the advantages of long distance conveying, no dust pollution, big capacity etc.
These silos can be used for material transition and storage, the bottom screw feeder can work together with dosing device to reach high precision material dosing.
This is for material dosing, some customer's technical recipe requires precise material dosing before further usage, the auto dosing system will be necessary.
Raw material outdoor storage silos, these big silos r used for storage the raw material.
The pipe and accessories assembly, these pipes connects the loading station, conveying part, storage part, etc.
For more detail info, welcome to contact with us freely.
