Grade 1050 2024 3003 5050 5052 6061 6063 7050 7175 1100 5083 1080 5056 5556 2117 2017 2018 2014 7075 T6 T4 Metal Aluminum Al Aluminium Alloy Plate Sheet Coil

Product Description

ZHONG DUO Aluminum Sheet Features:
Light weight Low cost Easier and convenient to install Environmental friendly and energy saving Anti-dirt and self-cleaning
Corrosion resistant and moisture proof Weathering resistance stronger than stone material and valid time longer Excellent ductility, can be made into various shapes
Aluminum sheet is mostly used for some parts which require good forming and processing properties, high anti-corrosion, but low strength, such as video, the transportation and storage equipments of chemical products, metal sheet products, the processing of drawing spinning hollow goods, welding key combination, reflector and nameplat, etc.
Alloy Material:
1000 series:1050 1060 1070 1070A 1100 1050A 1200 1235 1085 1035
2000 series: 2014 2024 2A13 2A12 2017 2A05 2A70 2A80 2A90 2A02 2A06 2A16 2A11 2A12
3000 series: 3003 3004 3005 3103 3104 31053 A21 3A12
4000 series: 4004 4101 4343 4047 4045 5000 series: 5A02 5A03 5A05 5A06 5A12 5083 5086 5182 5251 5052 5752 5754 5454 5005 5042 5051 5063
6000 series: 6061 6063 6005A 6013 6082 6005 6M61 6M63 6Y13 6025 6A02 6082
7000 series: 7075 7072 7050 7A04 7005 7A09 7020 7A16
8000 series: 8011 8A06

Physical Properties		Tensile Strength	Yield Strength	Elongation(%)
Grade	Hardness	(MPa)	(MPa)	0.25-1.25mm	1.26-3.0mm
1100	O	89.6	34.5	30	6
	H12	110.3	103.4	4	12
	H14	124.1	117.2	3	10
2024	O	186.2	75.8	18	20
	T3	482.6	344.7	16	18
	T4	468.8	324.1	20	19
3003	O	110.3	41.4	30	33
	H12	131	124.1	9	11
	H14	151.7	144.8	3	7
5052	O	193.1	89.6	20	21
	H32	227.5	193.1	7	10
	H34	262	213.7	6	8
5083	O	275.8	144.8	21	25
	H32	282.7	151.7	20	21
	H34	330.9	255.1	11	14
6061	O	124.1	55.2	25	26
	T4	241.3	144.8	22	24
	T6	310.3	275.8	12	17
7075	O	227.5	103.4	16	18
	T6	572.3	503.3	11	12

ZHONG DUO Aluminum Sheet Surface Treatment:
ZHONG DUO Aluminum Sheet Specification:
ZHONG DUO Aluminum Sheet Certifications:
ZHONG DUO Aluminum Company Profiles:
Shanghai Zhongduo Aluminum New Material Group Co. Ltd is a professional manufacturer of industrial aluminum alloy extrusion and profile over 10 years. With the building area around 10, 000 square meters and total invest amount around 1billion RMB Yuan. Our workshops have 7 aluminum extrusion production lines and more than 200 sets of advanced equipment. Which make us be the green manufacturing demonstration plant by Ministry of Industry and Information Technology. Our main products are including aluminum profile, aluminum extrusion, aluminum heat sink, aluminum conductor rails, aluminum gear pump, aluminum pipe, bar, plate, angle and so on. Our products are widely used in the industry of aerospace, train, electric car, agriculture, architecture, electronic, wind energy, nuclear energy, solar energy and so on. We have own entire system for pre-sale, in-sale and after-sale process. And our business scope covers technical consultation, technology development, technology projects and technology service in the field of manufacturing and selling various of aluminium extrusion profile with advanced equipment and strict quality inspection by authority like Bureau Veritas, Lloyd's Register, DNV, API, SGS and so on. Providing quality products, excellent services, competitive prices and prompt delivery, we are looking forward to cooperating with the clients all around the world.

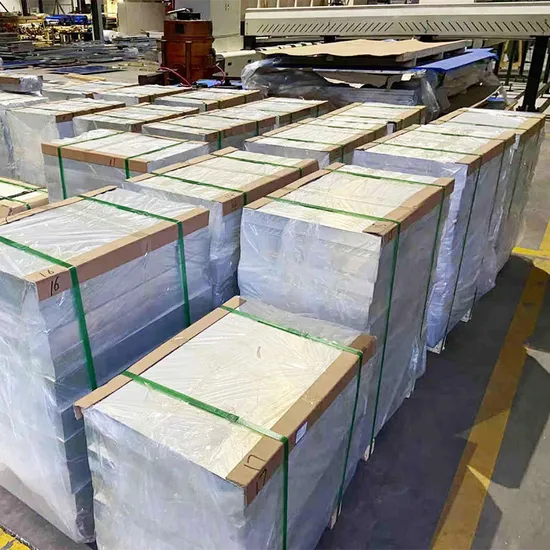

ZHONG DUO Aluminum Sheet Packing:
ZHONG DUO Aluminum Sheet Application:

Alloy		Application field
1xxx	1050	Insulation, food industry, decoration, lamp, traffic signs etc.
	1060	Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts etc
	1070	Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
	1100	Cooker, building material, printing, heat exchanger, bottle cap etc
2xxx	2A12 2024	Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts, car parts and various other structural parts.
3xxx	3003 3004	Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard.
	3005 3105	Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc
5xxx	5052	Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device, equipment and medical device panel etc.
	5005	Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
	5086	Ship board, deck, bottom and edge panel etc.
	5083	Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board, automotive and aircraft panel, cooling device and automotive molding etc.
	5182
	5454
	5754	Tanker body, marine facilities, pressure container, transportation etc.
6xxx	6061	Railway inside and outside parts, board and bed plate.
	6083	Industry molding
	6082	Highly stressed applications includes Roofing construction, transportation, and marine as well as mould.
	6063	Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
7xxx	7005	Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers
	7050	Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment
	7075	Aerospace industry, military industry, electronic etc

RFQ:
Q:Can you send samples?
A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, number of tons you need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
