PE/PP/PPR/PVC/ABS Plastic Hose/Tube/Pipe/Profile/Panel/Board Oil Ink Printing Machine

Product Description

Plastic pipe ink printer / stamping machine:
Product Description 1.It can continuously print factory name, product standards, product specification, trademark on the surface of wire and pipe ,rubber and plastics,
2.it is special suitable for printing label on plastic pipe,profile, panel, board, etc products in construction-material industry.


Description:

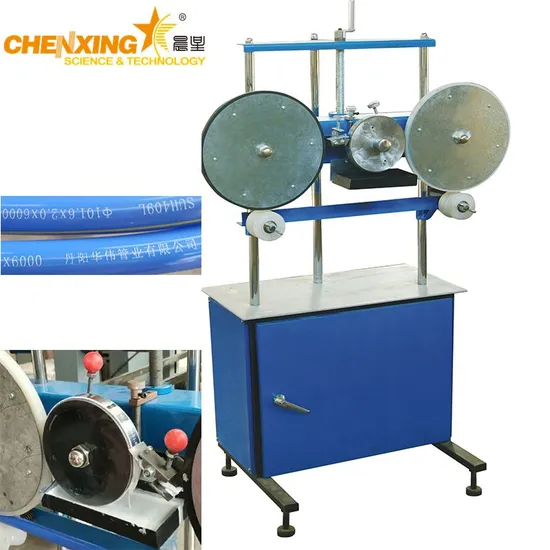

The machine has engine base, ink plate, printing wheel and adjusting mechanism.simple structure, convenient operation, ideal adjustment. And it does not have a motor. Main parts information ring is made of stainless steel, strong wear resistance, good looking.
Printing uses traction of take-up machine, through the pressure wheel and the wheel clamp wire friction torque traction words wheel and pressing wheel rotation, wheel ink wheel has also been driven by the ink applied to the wheel, turn the wheel through spatula scrape peripheral surface of the ink (ink retaining only flag) after the cable tight synchronization with embossed printing crisp text patterns. Another place, when the passage of plastic tumors when unattended, automatic roller lift, plastic tumor to be passed, resume normal operation automatically.
Product Parameters Plastic pipe ribbon printer:

Model	ink printer
Suitable diameter range(mm)	10-250
height of mechanical work (mm)	850-1050
Superscript lettering round specifications(mm)	86×12.7×20D×d×h
Rubber round specifications(mm)	172×20×20D×d×h
Vortex pump power(Kw)	Voltage 380V0.37Kw
dimensions(mm)	1300×560×480
Weight (Kg)

Detailed Photos
