Multifunctional Cip Cleaning Systems For Beverage Cip Systems For Pipe And Tank Cleaning

Product Description

Product Description

Multifunctional Cip Cleaning Systems For Beverage Cip Systems For Pipe And Tank Cleaning
Products Description
The CIP cleaning device is widely applicable to food industry, especially applicable to dairy, fruit juice and beverage etc.industries. During the food processing, cleaning and sanitation are of great importance, and measures shall be taken to prevent any pollution to food. Therefore, the CIP cleaning device is obviously indispensable. It can effectively control high organic wastes, microbes and bacteria etc. Furthermore, equipment, pipes and storage tanks that are compulsorily cleaned through CIP circulative cleaning fluid require no disassembly and reduce labor intensity.
CIP Cart
The portable CIP cart is composed of a caustic tank with an electric heating element, an acidic tank, a sanitary pump, a control panel and a support frame with wheels. The material of its main body is SUS304 stainless steel. The tank volume in the CIP unit depends on the brewhouse capacity and we usually offer 100 litre and 200 litre per tank for this type.
Processing order:
(1)The liquid level in the tank must be adjusted before operation.
(2) Cycling detergent must be released according to the switching of the flow valve. Wrong operation in the control system stops the cycling of detergent, operation will automatically stop.
(3) Water temperature is adjusted by thermal regulator.
(4) Air purge system starts working, most detergent can be recycled.
Advantages:
1. It can make the production plan reasonable and improve the produce ability.
2. To compare with the hand-wash, it doesn't influence the cleaning result because of the worker's difference, on the contrary, it can improve the products' quality.
3. It can prevent the dangers of cleaning work, so that we can save the work force.
4. It can save the cleanser, the steam, the water and the cost of production.
5. It can extend the service life of the machine parts.
6. It includes three types, one is the handwork system, one is the semi-automation system, and the other is the whole-automation system, so it is easy for customer's selection.
System Includes

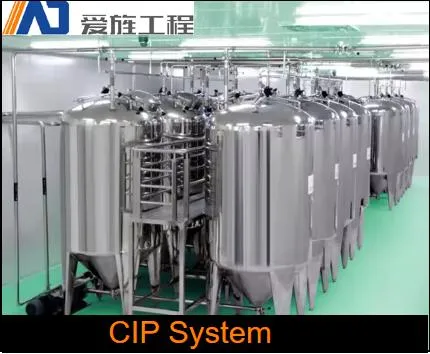

Intelligent CIP system is as central integration system including WFI tank, CIP tank, plate heat exchanger, piping filter, transfer pimp, loop liquid pump, temperature controller, level controller, conduct inspection instrument, PLC touch screen, control cabinet and piping and valves etc.
Work Principle
The cleaning liquid is automatically prepared by the CIP cleaning system through setting the program (adjustable program). The whole cleaning process including the conveying of cleaning liquids, return flow and circulation cleaning, discharging and recovery is completed through the pneumatic control valve, liquid conveying pump and liquid return pump. Automatic cleaning in place is realized through the control system consisting of the conductivity detector and PLC touch screen.

Tank size	500L-10,000L
CIP tank type	Alcali tankacid tankhot waterclean water tankwater recycle tank
Cleaning recycles	Single circuitdouble circuitsthree circuitsfour circuits
Heating method	Coil pipes insideplate tubular
Automatic types and charastics	Full Automatic	1. flow rate auto control; 2. temperature auto control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning liquids auto transfer; 6. auto alarm
	Semi-auto control	1. temperature auto control 2. electrical control with manual operate the other matters.
	Manual operation	1. manual operate on the cleaning process
