Advanced Fuel Combustion Technology Easy-Maintenance Boom Vertical Reach 56 M Engine Max Net Power: 290/1600 Kw/Rpm Truck-Mounted Concrete Pump on Sale

Product Description

Product Description

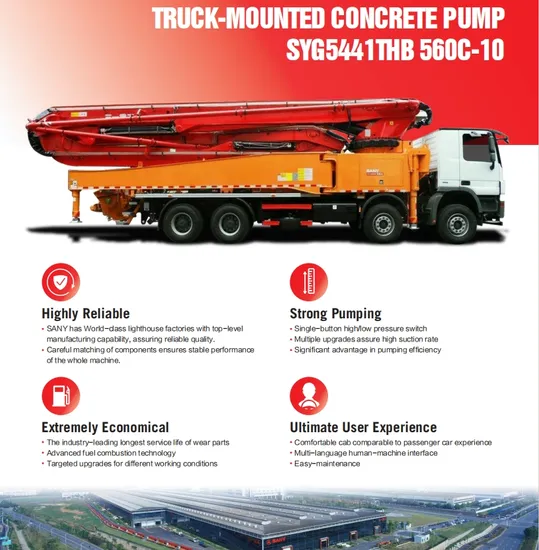

Introducing Our Top-of-the-Line Truck-Mounted Concrete Pump!
Transform your construction projects with our state-of-the-art truck-mounted concrete pump, designed for efficiency, precision, and reliability. Perfect for delivering concrete in challenging locations, this pump offers:
Exceptional Reach: Handles high-rise and complex construction sites with ease.
Powerful Performance: Delivers consistent flow rates and precision placement.
Durable Build: Built to withstand tough job site conditions.
Easy Operation: User-friendly controls and streamlined setup.
Elevate your construction capabilities with equipment that matches your ambition. Contact us today to learn more or schedule a demo!
Remote control System, wired (optional)
Industrial display control screen 7'' (optional)
Operating manual
7×24 service with no worry
Product Parameters

TECHNICAL DATA
Boom Pumping system
Vertical reach 56 m				Theoretical output 200 m3/h (137 m3/h)		9470mm			12530mm
Horizontal reach 51 m				Theoretical pressure 8.3 MPa (12 MPa)
Depth reach 36.6 m				Delivery cylinder diameter 260 mm
Unfolded reach 15.2 m				Stroke length 2100 mm				10604mm
Rotation ±360 °				Hydraulic system Open				10604mm
Front outrigger spread L-R 9470 mm				Hydraulic system oil pressure 32 MPa
Rear outrigger spread L-R 12530 mm				Oil tank capacity 610 L			6010mm		7540mm
End hose length 3 m				Water tank capacity 600 L
End hose diameter 125 mm				Drive pump /
Pipeline size 125 mm				Volume of hopper 700 L
DELIVERY & CONFIGURATIONS Chassis				Safety
Brand: BENZ				Mushroom button for horn, yellow
Model: Arocs 4140 Engine type: OM460LA. /4				Emergency stop
				Hopper plate
Engine max net power: 290/1600 kW/rpm				Cleaning
Emission standard: Euro
Capacity of fuel tank: 390 L				Sponge balls
Displacement: 12.8 L				High flow rate water pump: 50L/min @ 1.3Mpa
Max.speed: 90 km/h				Others
Functions
				Remote control System, wired (optional)
Agitator rotation, 2 direction				Industrial display control screen
Single-button double pistion return				Operating manual
Single-button high/low pressure switch				MachineLink+ APP/web connected
Auto-lubrication for core pump				7×24 service with no worry
