Tubular Centrifuge for Separating Bacterial Cell From Fermentation Broth

Product Description

Product Description Tubular Centrifuge for Separating Bacterial Cell from Fermentation Broth

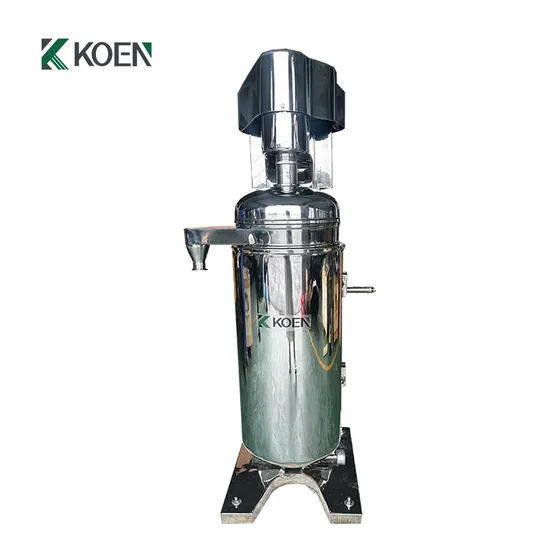

GQ Type tubular centrifuge is composed of main body, transmission device, drum, liquid collecting tray, and liquid-feeding bearing base. There is a flexible main axis on the top of drum, and a damping floating bearing at its bottom. With the linked buffering device, the main axis is connected with the passive wheel. Through the conveyor and the fastening wheel, motor provides power for the passive wheel, so the drum rotates around itself axis by high speed, and form strong centrifuge force field. Materials are launched from the bottom feeding inlet, by the centrifugal force, liquid flows upward along the drum wall, and is separated to layers because their different density.
Detailed Photos Product Parameters

Model	GQ75	GQ105	GQ125	GQ150
Drum Diameter	75mm	105mm	125mm	150mm
Rotating Speed of Drum	19000rpm	16300rpm	15000rpm	14000rpm
Centrifugal force	15200G	15620G	15700G	15600G
Capacity	600L/H	1200L/H	1500L/H	2500L/H
Motor	1.5kw	2.2KW	3.0KW	3.0KW
Weight	300kg	500kg	550kg	600kg
Dimension	760*450*1120mm	840*500*1600mm	900*550*1600mm	950*600*1600mm

Application Pharmaceutical industry
Vaccine production: In the process of vaccine preparation, microbial cells, impurities, etc. need to be separated from the culture medium. GQ tubular centrifuge can effectively achieve solid-liquid separation, obtain high-purity vaccine products, and ensure the quality and safety of vaccines, such as the production of influenza vaccine, hepatitis B vaccine, etc
Antibiotic extraction: Used for separating and extracting antibiotics from fermentation broth, removing solid impurities such as mycelium and culture medium residue, improving the purity and yield of antibiotics, commonly used in the production process of antibiotics such as penicillin and cephalosporins.
Traditional Chinese Medicine Preparations: Traditional Chinese medicine extracts often contain impurities that are difficult to separate, such as soap, protein, polysaccharides, etc. GQ tube centrifuge can quickly and effectively remove these impurities without losing effective ingredients, improve the clarity and quality of the medicine, shorten the settling time, and increase production. It is widely used in the production of various oral and injection formulations of traditional Chinese medicine
Biological products industry
Bacterial Separation: In microbial fermentation production, it can be used to separate and collect bacterial cells, such as yeast and lactic acid bacteria, for subsequent bacterial processing or extraction of metabolites. It has the characteristics of good separation effect and high recovery rate, which helps to improve production efficiency and product quality
Enzyme extraction: The production of highly active and high-purity enzyme preparations, such as amylase and protease, by separating enzyme proteins from fermentation broth or biological tissue homogenates containing enzymes, removing impurities and cell debris
Blood product processing: Used for centrifugal separation of plasma cold precipitation, it can effectively separate useful components such as coagulation factors in plasma. For example, GQ142 high-speed tubular separator can meet the requirements of cold precipitation extraction process in plasma cold precipitation centrifugal process, ensuring the quality and yield of cold precipitation
Food and beverage industry
Juice clarification: It can quickly remove impurities such as fruit pulp fibers and pectin from juice, making the juice clearer and more transparent, improving the quality and stability of juice, and extending the shelf life of juice. It is suitable for the production of various juices such as apple juice, orange juice, grape juice, etc
Refining edible oil: It can be used to remove impurities such as phospholipids, proteins, and colloids from edible oil, improve the transparency and quality of edible oil, and play an important role in the refining process of edible oils such as soybean oil, rapeseed oil, and peanut oil
Beverage production: In the production of tea beverages, coffee beverages, etc., it is used to separate and extract the active ingredients, remove residues and impurities, and make the beverage taste more pure and the quality more stable.
Chemical industry
Production of pigments and dyes: In the synthesis process of pigments and dyes, it is necessary to separate the solid particles after reaction from the liquid solvent. GQ tube centrifuge can achieve efficient solid-liquid separation, improve the purity and quality of pigments and dyes, and ensure the color and performance of the product
Catalyst recovery: used to separate and recover catalysts from mixtures after chemical reactions for recycling, reducing production costs, and improving production efficiency. It has a wide range of applications in petrochemical, fine chemical, and other fields.
Polymer material synthesis: In the synthesis process of polymer materials, it can be used to remove unreacted monomers, initiators and other impurities, as well as separate polymers of different molecular weights, to improve the performance and quality of products.
Company Profile Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
FAQ
Q1.What's your advantage? Why we choose you?
A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use Internationally renowned brand Inverter and PLC . Good quality materials and the best production process
Q2.What's the Payment?
A: T/T, Western Union, L/C, Ali Pay, etc
Q3.Are you a factory or trading company?
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4.How long is the warranty period ?
A:18 months after install .
