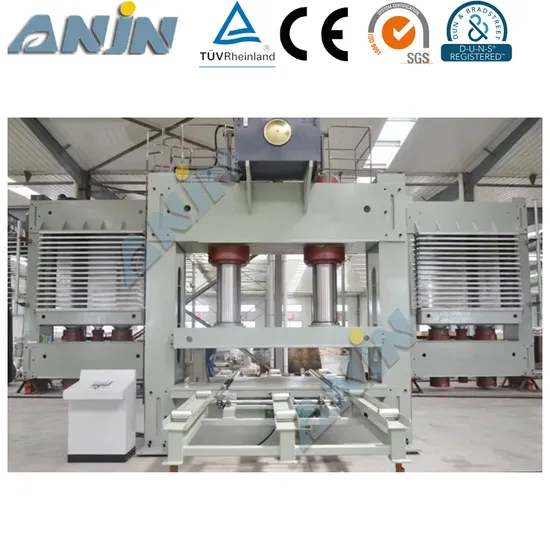

400t Veneer Cold Press Machine for Plywood Production/Veneer Pre-Press Machinery

400t Veneer Cold Press Machine for Plywood Production/Veneer Pre-Press Machinery

US$300.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
BY814*8/4B
Processing Technics
Cold Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
High Pressure
Pressing Layer
Single Layer
Work Mode
Continuous
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE, ISO
After-sales Service
Good After-Service
Transport Package
Standard Export Package
Trademark
ANJN
Origin
China
Production Capacity
20/Month

Product Description

The 400T veneer cold press machine for plywood production/Veneer Pre-press machinery is a main machine on plywood produce, except 500T, we also have other pressure and size for client to choose.
Characters of 400T veneer cold press machine for plywood production/Veneer Pre-press machinery:
1) Window frame construction
2) Uniform pressure distribution
3) Hydraulic and electrical components of international standards
4) Push button/PLC based control
5)Inbuilt chain conveyor system
6)Siemens Control System
Chain quantity and lift function can be choosed according to client's requirement.
Real solid cylinder, welcome your visit and check in any time.
The parameter of 400T veneer cold press machine for plywood production/Veneer Pre-press machinery:
MODEL BY814×8/5B BY814×8/4C
Nominal pressure 5000kN 4000kN
Surface pressure 1.3Mpa 1.3Mpa
Platen Size 2700×1370mm 2700×1370mm
Maximum working stroke 1000mm 1000mm
Maximum working stroke 3.6m/min 3.6m/min
Net open 300-1300mm 300-1300mm
Pressure cylinder diameter and number φ360mm/2 φ360mm/2
Lift cylinder diameter and number φ80mm/2 φ80mm/2
Maximum work pressure 25Mpa 25Mpa
Feeding speed 6.78m/min 6.78m/min
Motor power 1.1kW 1.1kW
Hydraulic motor power 15kW 15kW
Machine total power 16.1kW 16.1kW
Overall sizes 3500×2400×5165mm 3500×2400×5165mm
Weight 18000kg 17500kg

FAQ Q1:Why ANJN? 100% customer oriented solution. 20+ years wood-based industrial team members. Strongest awareness protect customer business privacy. Deep insights&penetrate the tricks on the market. Familiar with international jargon. Attention to detail&integrity allows us to grow. Q2:Could u offer engineer service at sight? Yes,as normal,ours engineer with experienced,and visa services,tickets,and flight. Q3:Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Because we are always expecting long term business. Regarding the price.we are not sure if it is lowest or highest,But we will be offering reasonable.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines. Q4:Can you customize products for clients? Yes We can customize products according to the customer's requirements or drawings.At same time,Strongest awareness protect customer business privacy. Q5:What's your warranty? can you do more service for us? we wish would be protected after purchasing machine? We are pleased to give products continuous after sales service. Within 12 months, if spareparts broken,we will response timely. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficulty. we must help to make solutions within 48 hours.
