Premium 2200X12500mm Wood Impregnation Autoclave for Quality Assurance

Product Description

Product Description

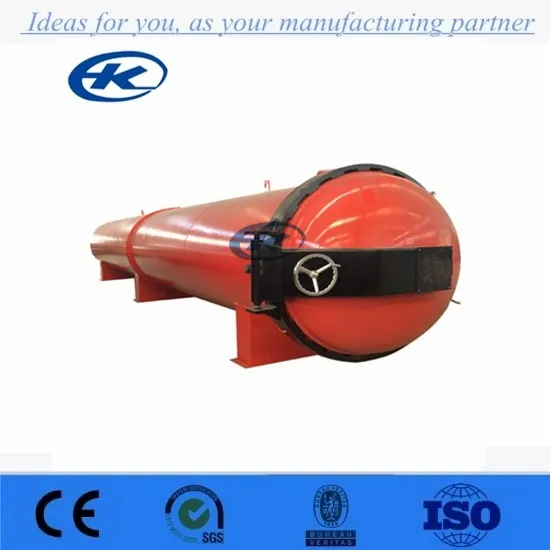

Pressure Vessel Wood Treatment Vacuum Impregnation Autoclave Professiomal automatic plant for pressure impregnated wood apply to wood's corrosion protection, fire retardant, mothproof, fire prevention, insect-resistant, modification, dyeing, coking, degrease and deep processing. Wide applicability, better effect of processing, big capacity. reasonable layout, safety and reliable are the advantages of this equipment. And it also have advantages of reduce labor intensity and working cost. It completely meet the requirement of deep processing of all kinds of wood.

Model	Capacity/ stere	Treat capacity/ stere
DN 1200*4000mm	4.6	3.0
DN 1200*6000mm	6.7	4.5
DN 1200*8000mm	9.0	6.0
DN 1500*4000mm	7.0	4.71
DN 1500*6000mm	10.5	7.0
DN 1500*8000mm	14	9.4
DN 1700*4000mm	9.0	6.0
DN 1700*8000mm	18.1	12
DN 1800*4000mm	10.1	6.78
DN 1800*6000mm	15.2	10.17
DN 1800*8000mm	20.3	13.5
DN 2000*6000mm	18.8	12.5
DN 2000*8000mm	25	16.7
DN 2000*10000mm	31.4	20
DN 2000*18000mm	56	37

Detailed Images
Technology
1. Initial vacuum: we need to keep the tank vacuum before filling of the wood preservative. And it will make the wood preservative into wood cells better. The vacuum degree is -79.8~90kpa and the vacuum time is according to different product(normally 15-60 minutes). when the cylinder in vacuum state, a part of air in the wood was taken out, the resistance will reduce when the wood preservative pushed into wood, so the wood preservative will be easy to get into wood cell.

2. Filling of preservative into tank: Add the wood preservative by manual valve when the equipment in vacuum state, to make sure the air which in the same condition was stopped in the wood cells. (the degree of vacuum is up to the size of valve)

3. Boost pressure stage: Begin to boost pressure lowly to 1.0-1.4MPa when the preservative is full of wood tank ,then keep the pressure value until the regulation preservative into the wood.

4. Pressure relief and discharge preservative: Discharge the pressure after the regulation preservative is absorbed. There will be a little recoil phenomenon(5-15%) during the process.

5. Final vacuum: Pumping air from the tank to keep the tank vacuum after the preservative discharged from the tank. The purpose is to extract excess wood preservative to reduce the phenomenon of oil dripping.

6. Recover atmosphere, then open the door and take out of timbers.

Packaging & Shipping
Customer visit
FAQ 1.What is the max size can you do?
The max diameter which we can produce is 4.5m.
The length is up to the clients' requirement.
2.How many wood can you treat for one circle ?
It is up to your choose diameter and length
3.How long to finish one circle ?
Generally is 2-3 days. is up to wood's thickness.
4.Is it manual or automatic operation ?
This machine is full automatic type.
5.Can we install the equipment by ourselves?
Of course ,we have full set drawing which will send to you after order
6. lf your engineer is aviliable to oversea to install
Yes ,if you need ,we can arrange the engineer to install for you.
