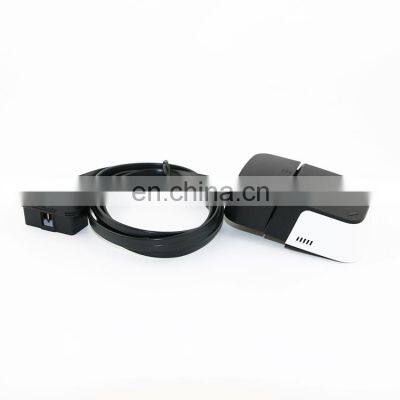

4G+WIFI OBD Terminal GPS Tracker, Model No. HR-M401
Passenger Vehicle, Commercial Vehicle, Common Series
1. Products IntroductionHR-M401 is 4G+WIFI version OBD terminal Integrated advanced Netcom Qualcomm data communications module, high-precision GPS module, WIFI module, high-performance three-axis gravity sensor and vehicle ECU computer communication module. The vehicle running status, vehicle condition data, vehicle fuel consumption data and driver control data can be uploaded to the vehicle networking management cloud platform through the wireless module, and the vehicle management platform can be realized through terminal data, statistical vehicle trajectory, driving behavior, fuel consumption statistics, anti-theft tracking and the like Remote management of the fleet, reducing vehicle fuel consumption by regulating driving behavior.Car WiFi hotspot can be created by 4G signal to provide more people to share and experience the smooth network.Optional extension cord will be placed on top of the terminal instrument, beautiful appearance.
1.2 4G+WIFI Hot spots4G network, data upload speed has been greatly improved.Mobile WIFI hot spots, to meet the multi-people sharing network.
1.3 Network communication protocolTCP Commands
2.1 OBD ProtocolISO-15765 500K ST
ISO-15765 500K EX
ISO-15765 250K ST
ISO-15765 250K EX
ISO-14230 FAST
ISO-14230 SLOW
ISO-9141-2
SAE-J1939
2.2 Indicator light① Green – GPS② Blue–Communication
③ Orange – GPRS
④ Yellow– Wifi

Performance parameters
physical dimension	70*55*25mm (L*W*H)
Operating Voltage	9V-36V DC
Average working current	130mA@12V
Sleep working current	3mA@12V
Operating temperature	-30℃~+70℃
storage temperature	-40℃~+85℃
positioning accuracy	<10m
GPS frequency range	1575.42MHZ
Frequency Range	FDD LTE: B1/B3
		TDD LTE: B38/B39/B40/B41
		TDSCDMA: B34/B39
		WCDMA: B1
		CDMA2000 1x/EVDO: BC0
		GSM: 900/1800MHz
WIFI frequency range	2400-2485M
OBD type	SUPPORT OBDII/EOBD
4 ANTENNA	BUILT IN
GPS ANTENNA	BUILT IN
WIFI ANTENNA	BUILT IN
GPS receiver
Cold start time (average)	<30 seconds
Hot start time (average)	<5 seconds
positioning accuracy	<10 meters
Receiver type	L1 frequency, C/A Code 50 channel
Receiving sensitivity	<-161dB, Typical value
Speed accuracy	<0.1 m/s
Network communication receiver
Communication module	EC20-CE
		Class 3 (23dBm±2dB) for LTE FDD
		Class 3 (23dBm±2dB) for LTE TDD
		Class 3 (24dBm +1/-3dB) for TD-SCDMA
		Class 3 (24dBm +1/-3dB) for UMTS
		Class E2 (27dBm ±3dB) for EDGE 850/900MHz
		Class E2 (26dBm +3/-4dB) for EDGE 1800/1900MHz
		Class 4 (33dBm ±2dB) for GSM 850/900MHz
		Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Receiving sensitivity	LTE B1: -97dBm(20M)
		LTE B3: -96dBm(20M)
		LTE B5: -99dBm(10M)
		LTE B7: -97dBm(20M)
		LTE B8: -98dBm(10M)
		LTE B20: -96dBm(20M)
		UMTS B1: -110dBm
		UMTS B5: -112dBm
		UMTS B8: -111dBm
		GSM 850: -111dBm
		GSM 900: -110dBm
		GSM 1800: -109dBm
		GSM 1900: -109dBm
