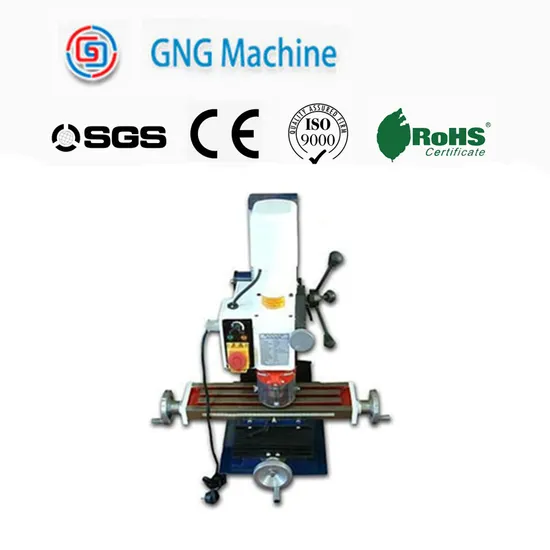

Electric Mini Drilling /Milling Machine
| US$340.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
XJ9512
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Cross Travel
100/130mm
Spindle Stroke
180mm
Drilling Capacity
16mm
Milling Capacity
30mm
Motor Power
550W
Transport Package
Package
Specification
CE
Trademark
can use customer brand
Origin
China
HS Code
845959000
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-2500rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: weihao
Model Number: XJ9512
Voltage: 380V
Power(W): 550W
Dimension(L*W*H): 570x510x740mm
Weight: 62kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 57x51x74cm 64x57x72cm 62/80kg
Delivery Detail: 30-45days
Specifications
*Variable speed
*Spindle micro feed
*DC motor
*Positive spindle lock
*Imported speed control unit
| XJ9512 MINI DRILLING & MILLING MACHINE | ||||
| Technical spec. | XJ9512 | |||
| FOBQingDao Price(USD) | ||||
| Drilling capacity | 16mm | |||
| Max face millcapacity | 30mm | |||
| Max end mill capacity | 13mm | |||
| Spindle stroke | 180mm | |||
| Longitudinal travel | 250/300mm | |||
| Cross travel | 100/130mm | |||
| Spindle rotary angle | -45~+45 | |||
| Working table size | 410/460x112mm | |||
| Motor power | 550W | |||
| Max distance spindle to table | 220mm | |||
| Spindle taper | MT3 | |||
| Spindle speed | 50-2500RPM | |||
| Net weight/Gross weight | 62/80kg | |||
| Packing size | 570x510x740mm 640x565x720mm | |||
| Product featues | *Variable speed *Spindle micrp feed *DC motor *Positive spindle lock *Imported speed control unit *Adjusrable gibs on table *Milling, drilling. boring, reaming. *Accurate position, strong rigidity, strong cutting power *Head swivels ± 45° of perpendicular | |||
