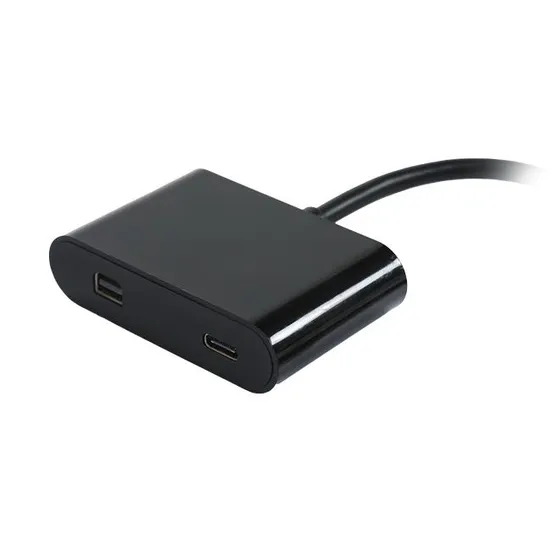

USB C 3.1 Male to Mini Displayport Adapter with 60W Power Delivery

Product Description

Description:
The USB 3.1 Type C to Mini DisplayPort 1.4(When source supports it) and PD 60W Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort Alternate Mode to a Mini DisplayPort 1.4 enabled Ultra High Definition Monitor, Television or Projector. The DisplayPort adapter is compact and highly portable. Powered by the USB C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks. This signal converter works also with DP1.2.
Product parameters of USB-C 3.1 Gen 1 Male to MiniDisplayPort 1.2 and Power Delivery Adapter:

Item	USB-C 3.1 Gen 1 Male to MiniDisplayPort 1.2 and Power Delivery Adapter:
Brand	Kaiwin
Model No.
Connector 1	USB 3.1 Type C male connector
Connector 2	MiniDisplayPort connector
Connector 3	USB 3.1 Type C female connector
Connector plating	Nickle Plated\Gold flash
Pin plating	Gold flash
Gender	male to female
Wire	UL 28~24AWG
Conductor	BC,TC
Pin layout	Standard
Material	ABS
Jacket	PVC
Color	Black, White
Sample	Allowed
MOQ	200 pcs
OEM\ODM	Support
Certification	RoHS\REACH

Features of USB-C 3.1 Gen 1 Male to MiniDisplayPort 1.2 and Power Delivery Adapter:
Reversible USB Type-C connectorSmall and portable, you can slip the adapter into your laptop case and have it ready for use wherever and whenever the need arises.This adapter is a true Plug & Play device, with no need for drivers or software installations of any kind. Just plug the reversible USB-C connector into your computer's video output and connect to your DisplayPort display using a DisplayPort cable (not included).
Application of USB-C 3.1 Gen 1 Male to Mini DisplayPort 1.2 and Power Delivery Adapter:
Compliant to VESA DisplayPort 1.4 Alternate Mode.Connect a Mini DisplayPort display at resolutions up to 3840x2160p @60Hz to mirror your laptop's display or to expand your system's desktop area.The USB Type-C charging port allows you to connect your original USB-C charger, so you can charge your laptop's battery rather than draining it, while using this adapter up to 60W (20V/3A).Detailed Photos
