5.8GHz/2.4GHz Dual-Band Signal Booster for WiFi, Fpv or Dji Drone Signal Extender

Product Description

Product Description
ACASOM 2.4/5.8GHz Dual Band SignalBooster/Etender
Design For
DJI Mavic 3 Classic Mavic 3 Mavic 2
DJI Air2S Air2
DJI Mini3 Mini3 Pro Mini2
DJI Avata
DJI RC Pro
DJI Phantom4 Pro Phantom4 Pro V2.0
DJI Inspire2
Autel Lite+/Nano
Autel EVO/EVOII/P

Working Band: 2.4-2.5GHz and 5.725-5.85GHz
Output Power:4W / 36dBm
ACASOM 2.4/5.8GHz Dual Band Signal Booster/Extender is a device that helps to
enhance the range and strength of wireless signals in both the 2.4GHz and 5.8GHz frequency bands. It works by amplifying the signals that are transmitted and received by wireless devices such as routers, smartphones, laptops, and tablets, thereby improving the signal strength and extending the coverage area.
The signal booster/extender can be useful in situations where the wireless signal is weak or not strong enough to provide reliable connectivity, especially in large buildings or areas with many obstacles that block or interfere with the signal. By boosting the signal strength, the device can help to eliminate dead zones and provide a more stable and reliable wireless connection.
When choosing a signal booster/extender, it is important to ensure that it is compatible with the frequency band of your wireless devices, and that it meets the required standards and regulations for signal amplification in your country or region. It is also recommended to follow the manufacturer's instructions for installation and use to ensure optimal performance and avoid interference with other wireless devices.

Product Parameters

Number	Items	Specifications
1	Frequency Range	2400-2500MHz	5725-5850MHz
2	Operating Voltage	5-16V
3	ReceivingGain	17dB±1	15dB±1
4	Transmission Gain:	18dB±1	18dB±1
5	Max Output Power(P1dB)	36dBm(4W)	36dBm(4W)
6	Input Trigger Power	Min:5dBm Max:23dBm	Min:5dBm Max:23dBm
7	EVM	3%@27dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	3%@27dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	<3.0dB	<4.0dB
9	Current Supply	680mA@Pout 27dBm 12V	550mA@Pout 27dBm 12V
10	TX/RX Switch Time Delay	<1 us
11	LED Indicator	Transmitter: Red; Receiver: Green
12	OperatingTemperature	-30ºC~+70ºC
13	StorageTemperature	-40ºC~+150ºC
14	Operating Humidity	Up to 95% rel. humidity
15	RF Connector	Input: SMA-Female; Output: RP-SMA-Female
16	Power Socket	2.5*0.7mm
17	Shell Size	65*62*12(mm)
18	Shell Material	Aluminum
19	Net Weight	0.1Kg

Detailed Photos

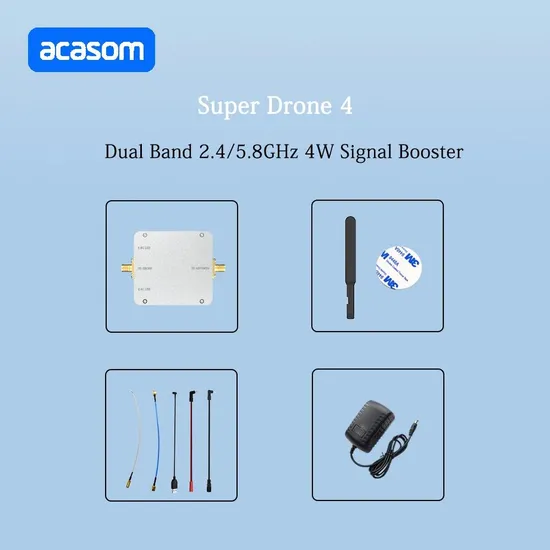

WHAT IS INCLUDE
1PCS*2.4GHz/5.8GHz Dual Band Signal Amplifier
1PCS*Power Plug
1PCS*Dual Band Antenna( white or black )
5PCS*DC Line Adapter
Service and process of order
Certificates and patents
Why choose us

ACASOM has been in the industry for 15 years and we have patents for more than 20 pieces. All the products are our self developed and we are willing to customize products for you. We always insist that technology and service are our core competence, we are ready and at your service.

Exhibition and invitation

FAQ
1 I do not know whether your product satisfy my need, how can i know more?
Answer: Please start an inquiry, we have sufficient experienced engineer and existing products for you. 2 Could i customize my products, like frequency? Answer: Yes and we will provide more information, if that is reasonable, we could provide solutions for you.
3 I want to know more details with the products like video and application, how could i manage that?
Answer: Just choose or contact any of our sale manager, we will be at your service.
4 If i can change some parts, such as switch power module to red and black wire line?
Answer: Off course. We can provide reasonable changes for you at any time.
