New Heating CuNi alloy Copper Nickel Resistance Constantan Foil/ Cu-Ni Alloy 6j11 Foil CuNi40
| US$20.00 | 50 KG (MOQ) |
Basic Info.
Model NO.
CuNi40
operation
Annealed
thickness
0.2mm
Transport Package
Coil, Waterproof Paper, Pallet
Specification
thickness 0.05mm-3mm, Width 10mm-1000mm
Trademark
TANKII
Origin
China
HS Code
74082200
Production Capacity
30 Tons/Month
Product Description

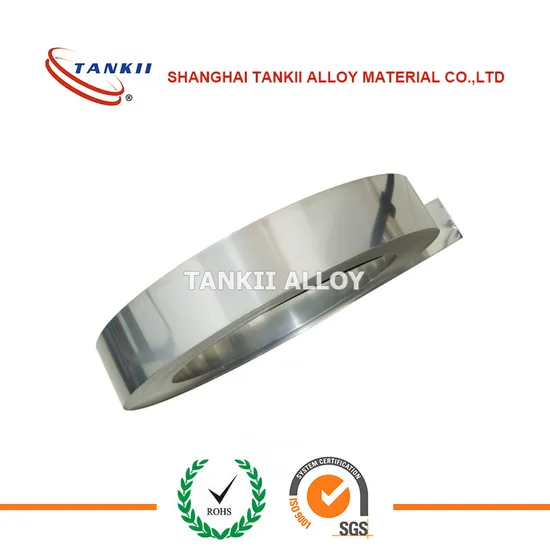

New Constantan Foil/ Cu-Ni Alloy 6j11 FoilConstantan is a copper-nickel alloy usually consisting of 55% Copper and 45% Nickel. Its main feature is its resistance which is constant over a wide range of temperatures.
Other grade of copper nickel alloy are as follows:
CN5, CuNi2
A60, Alloy 60, 60 Alloy, MWS-60, Lohm, HAI-60, CuNi 6, Alloy 260, Nickel Alloy 60, CN10
CuNi10, CN15
A30, Alloy 30, CuNi23, 30 Alloy, MWS-30, HAI-30, Alloy 230, Nickel Alloy 30, CN 30
CuNi1, CuNi15, CuNi30
Shanghai Tankii Alloy Material Co., Ltd. is the most professional producer of constantan, copper nickel alloys in wire, strip, foil, sheet and rod.
If there is any question or requirement, pls be free to contact with us.
| Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy | |||||||
| Properties\Grade | CuNi1 | CuNi2 | CuNi6 | CuNi8 | CuMn3 | CuNi10 | |
| Main Chemical Composition | Ni | 1 | 2 | 6 | 8 | _ | 10 |
| Mn | _ | _ | _ | _ | 3 | _ | |
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | |
| Max Continuous Service Temperature(oC) | 200 | 200 | 200 | 250 | 200 | 250 | |
| Resisivity at 20oC (Ωmm2/m) | 0.03 | 0.05 | 0.10 | 0.12 | 0.12 | 0.15 | |
| Density(g/cm3) | 8.9 | 8.9 | 8.9 | 8.9 | 8.8 | 8.9 | |
| Thermal Conductivity(α×10-6/oC) | <100 | <120 | <60 | <57 | <38 | <50 | |
| Tensile Strength(Mpa) | ≥210 | ≥220 | ≥250 | ≥270 | ≥290 | ≥290 | |
| EMF vs Cu(μV/oC)(0~100oC) | -8 | -12 | -12 | -22 | _ | -25 | |
| Approximate Melting Point( oC) | 1085 | 1090 | 1095 | 1097 | 1050 | 1100 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | non | non | non | non | non | non | |
| | |||||||
| Properties\Grade | CuNi14 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNi44 | |
| Main Chemical Composition | Ni | 14 | 19 | 23 | 30 | 34 | 44 |
| Mn | 0.3 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | |
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | |
| Max Continuous Service Temperature(oC) | 300 | 300 | 300 | 350 | 350 | 400 | |
| Resisivity at 20oC (Ωmm2/m) | 0.20 | 0.25 | 0.30 | 0.35 | 0.40 | 0.49 | |
| Density(g/cm3) | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
| Thermal Conductivity(α×10-6/oC) | <30 | <25 | <16 | <10 | <0 | <-6 | |
| Tensile Strength(Mpa) | ≥310 | ≥340 | ≥350 | ≥400 | ≥400 | ≥420 | |
| EMF vs Cu(μV/oC)(0~100oC) | -28 | -32 | -34 | -37 | -39 | -43 | |
| Approximate Melting Point( oC) | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | non | non | non | non | non | non | |
